Optimizing Performance
Using the Dual Power Meter Display

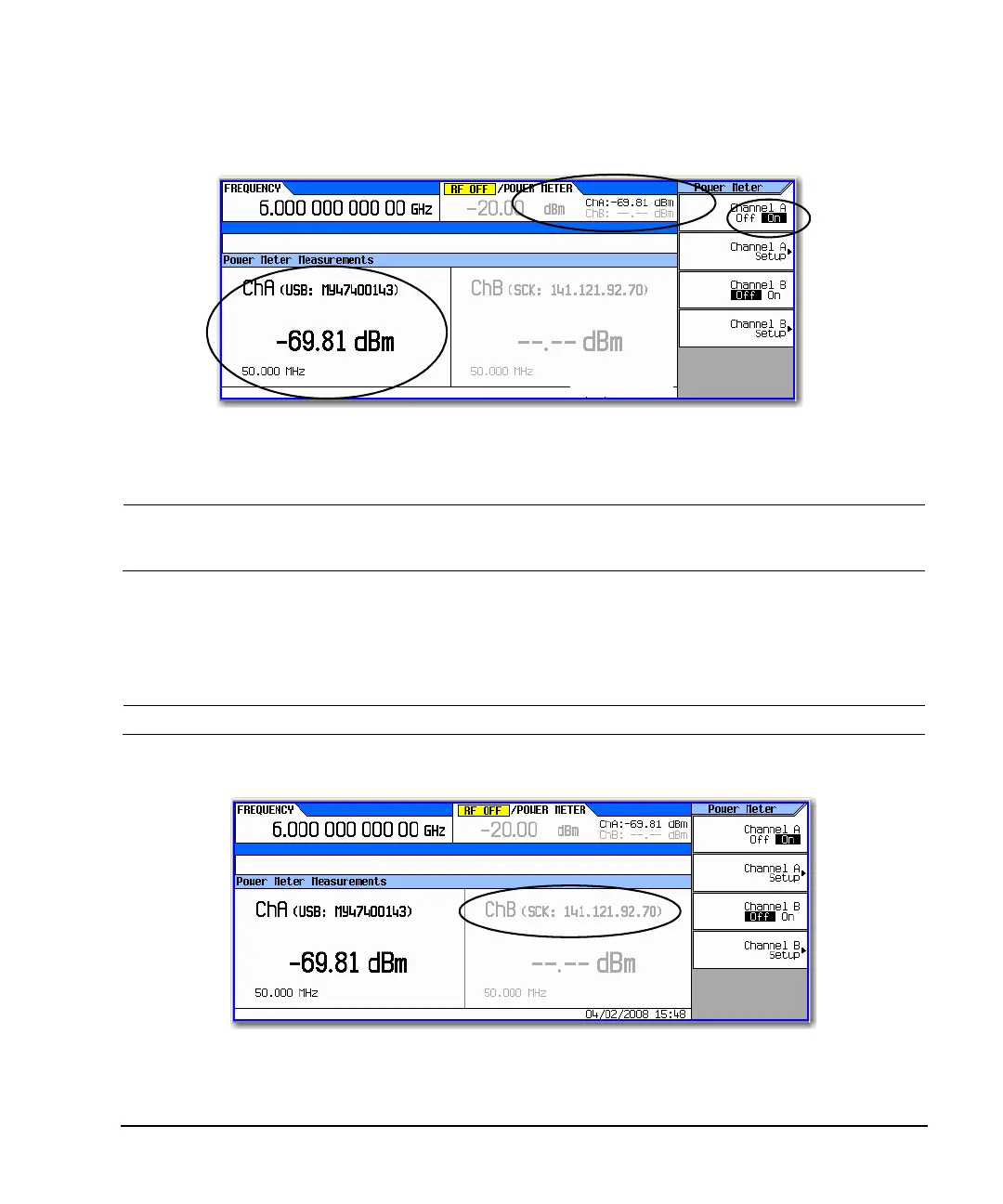

Figure 5-8 Channel A Power Sensor Displayed on MXG/EXG
6. On the N1912A P–Series Power Meter (Channel B power sensor): Connect the N1912A P–Series
Power Meter to the LAN.
7. Connect the power meter sensor to channel B of the power meter.
NOTE It is recommended, but not required to use the channel B on the N1912A. This provides
continuity with the signal generator’s dual display. For this example, the U2004A has
already used up the channel A position on the signal generator.
8. Connect the power sensor input to the 50 MHz reference of the power meter.
9. Press Channel B Setup
10. Press Connection Settings > Sockets
11. Press IP Address > IP address > Enter
NOTE The IP address of the power meter should be displayed in the ChB section of the display.
Figure 5-9 Channel B Power Sensor with IP Address Entered
12. Press Return > Channel Settings > External Power Meter Channel to B.
For details on
each key, use key
help as described
on page 44.
For details on
each key, use key
help as described
on page 44.
