90 Agilent X-Series Signal Generators User’s Guide
Optimizing Performance
Using the Dual Power Meter Display
A Running Calibration(s) bar is displayed on the signal generator. Refer to Figure 5- 6 on
page 90.

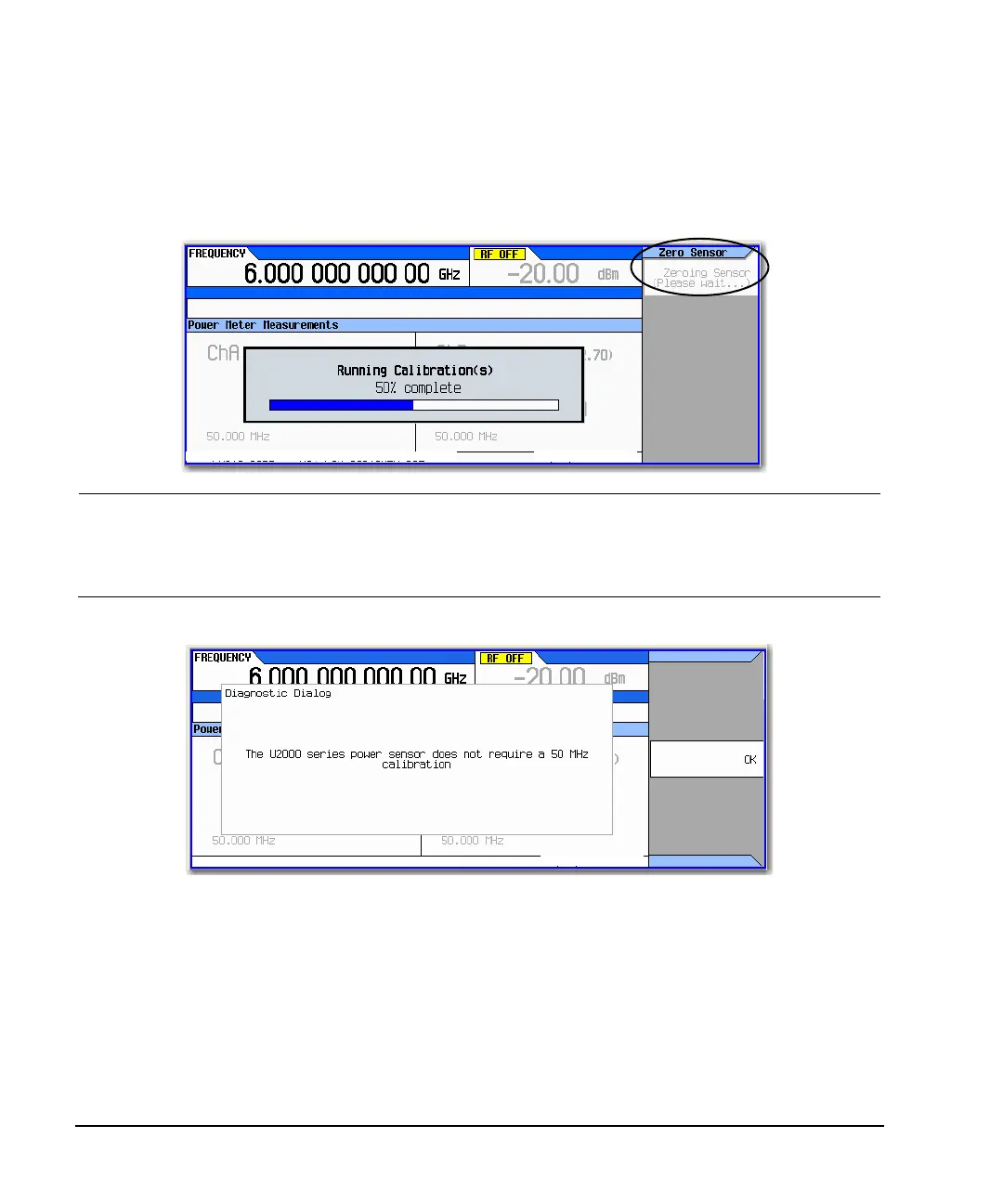

Figure 5-6 Running Calibration(s) Bar (Zeroing Sensor)
NOTE The U2000 Series USB Power Sensor, does not require a 50 MHz calibration. If a
calibration is attempted with the U2000 Series Power Sensors, the signal generator
displays a message reading:
The U2000 series power sensor does not require a 50 MHz calibration. Refer to
Figure 5- 7 on page 90.
Figure 5-7 Diagnostic Dialog Box Displayed for U2000 Power Sensor
5. Press Return > Return > Channel A to On
The current power meter sensor reading should be displayed in the ChA portion of the
instrument's display and in the upper right portion of the display under Power Meter. Refer to
Figure 5- 8.
For details on
each key, use key
help as described
on page 44.
For details on
each key, use key
help as described
on page 44.
To Next Page
