Agilent X-Series Signal Generators User’s Guide 93
Optimizing Performance
Using the Dual Power Meter Display
17. Press Done
Calibration progress bar is displayed. Refer to Figure 5- 12 on page 93.

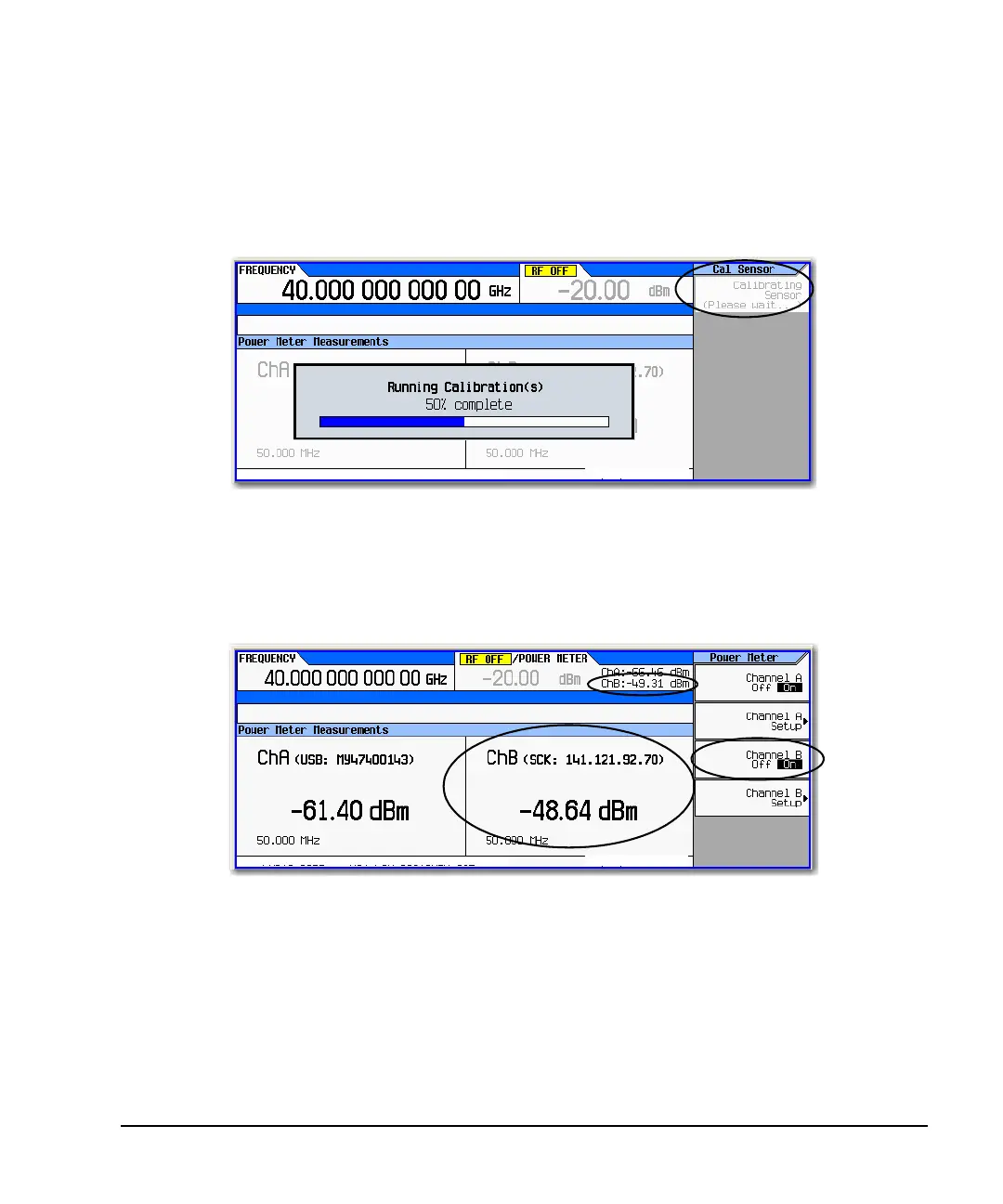

Figure 5-12 Running Calibration(s) Bar (Calibrating Sensor)
18. Press Return > Channel B to On
19. The current power meter sensor reading should be displayed on the signal generator in the ChB
portion of the display and in the upper right corner of the display under Power Meter and to the
left of the Power Meter power sensor reading.
Figure 5-13 Channel B Power Sensor Displayed on MXG/EXG
20. The power sensors are now ready to be connected in a measurement setup.
For details on
each key, use key
help as described
on page 44.
For details on
each key, use key
help as described
on page 44.
