318 Agilent X-Series Signal Generators User’s Guide
Custom Digital Modulation (Option 431)
Custom Modulation

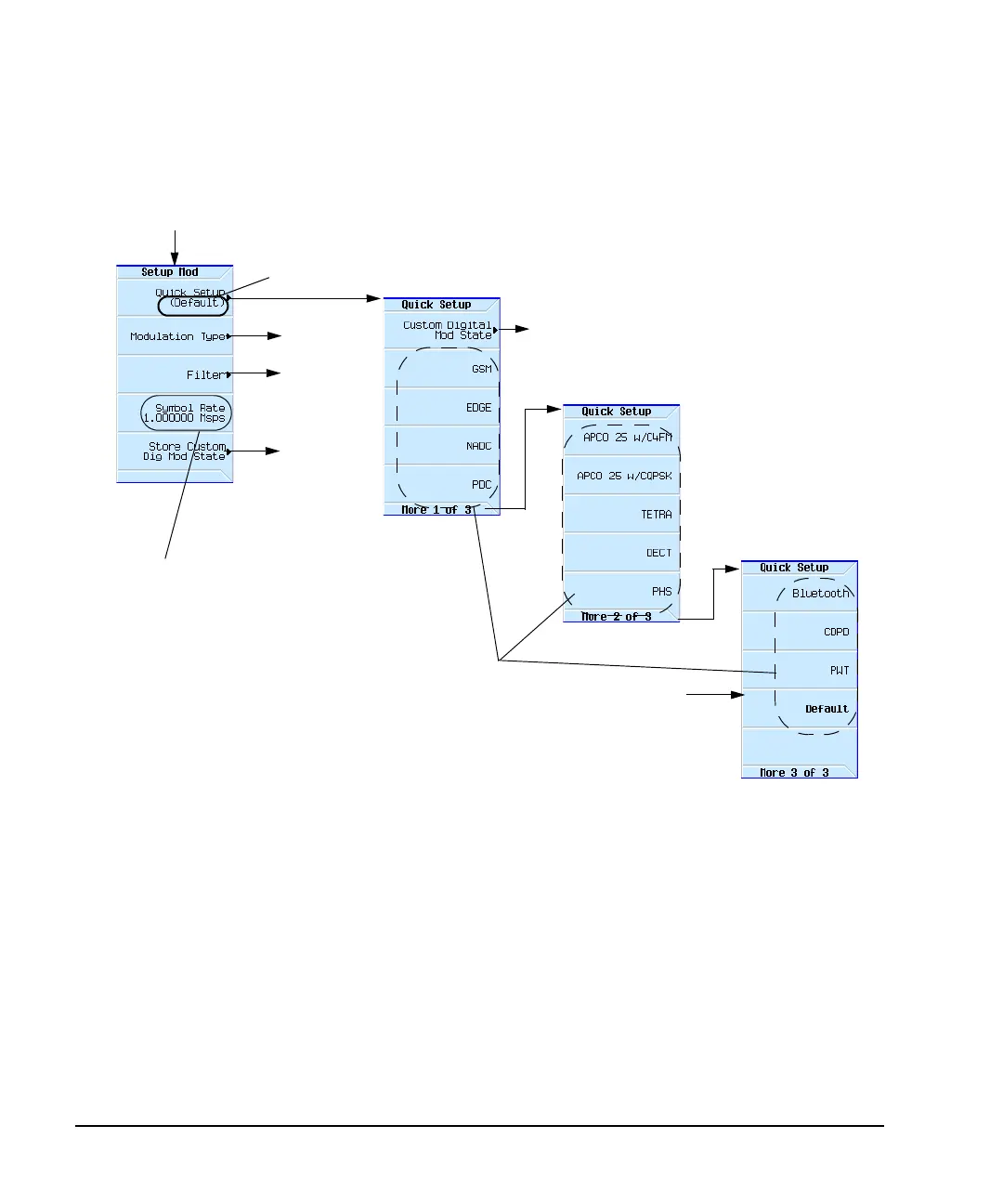

Figure 13-2 Quick Setup Softkeys
page 319
page 353
page 343
Mode > ARB Custom Modulation > Single Carrier Setup
page 320
This softkey label shows
the currently selected
modulation standard.
Press Symbol Rate
softkey and use
numeric keypad to
change value as
required.
The default (initial)
Symbol Rate
maximum range value
is dependent upon the
modulation standard
selected with the
Quick Setup softkey.
When one of these pre–defined
modulation standards is selected,
default values for components of the
setup (including filter, symbol rate, and
modulation type) are automatically
specified.
For details on each key, use key help as described on page 44.
Default: This softkey selects the
following default settings:
Modulation Type = QPSK,
Symbol Rate = 1 Msps,
Filter = Root Nyquist, and
Filter Alpha = 0.5
