334 Agilent X-Series Signal Generators User’s Guide
Custom Digital Modulation (Option 431)
Using Customized Burst Shape Curves
Entering Sample Values
Use the sample values in the following table.
1. Highlight the value (1.000000) for sample 1.
2. Press .4 > Enter.
3. Press .6 > Enter.
4. Enter the remaining values for samples 3 through 6 from the table above.
5. Press Return > Edit Fall Shape > Load Mirror Image of Rise Shape >
Confirm Load Mirror Image Of Rise Shape.
This changes the fall shape values to a mirror image of the rise shape values, as shown in Figure
13- 15 on page 334.

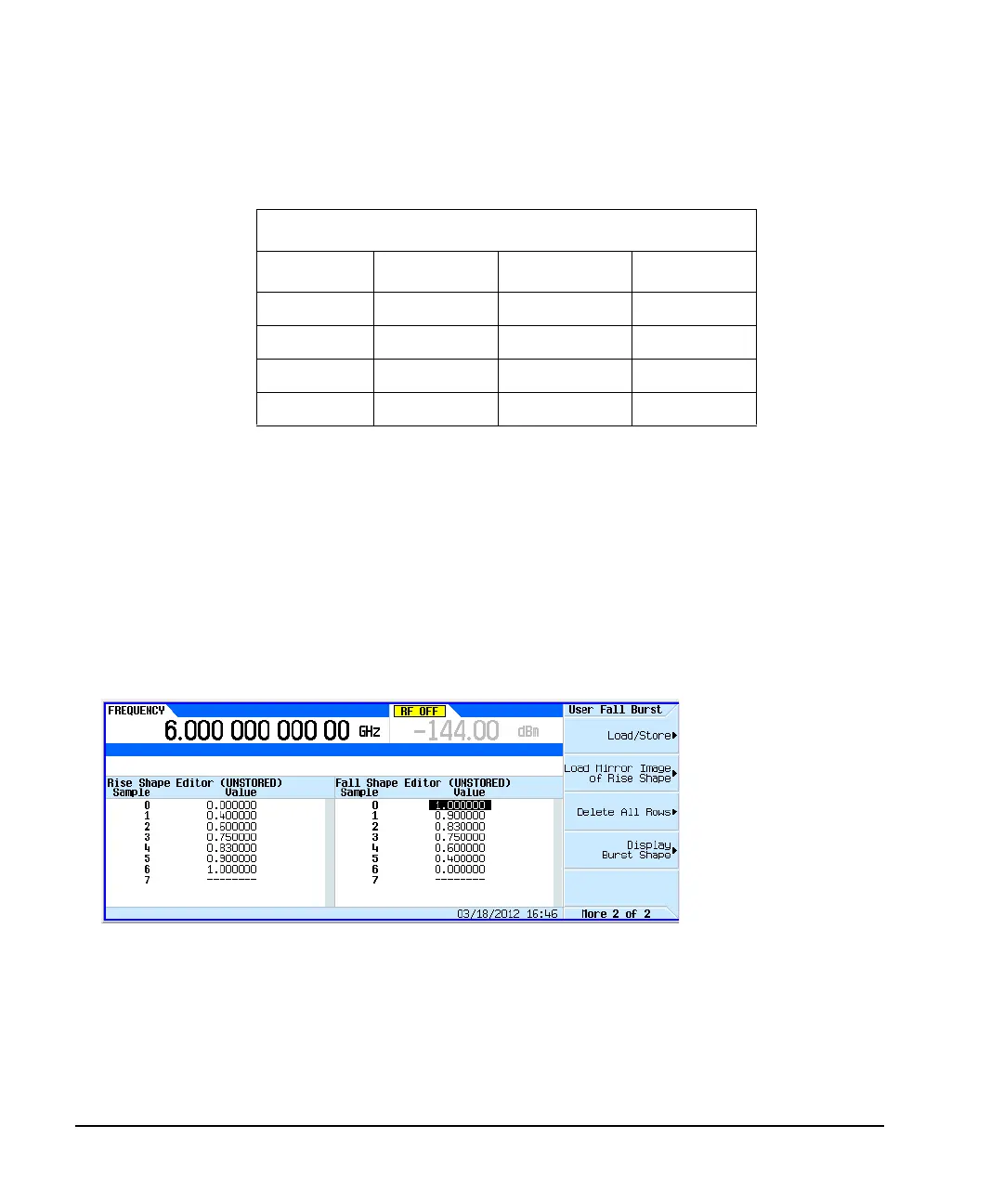

Figure 13-15 Mirror Image of Rise Shape
Rise Shape Editor
Sample Value Sample Value
0 0.000000 4 0.830000
1 0.400000 5 0.900000
2 0.600000 6 1.000000
3 0.750000
