Agilent X-Series Signal Generators User’s Guide 345
Custom Digital Modulation (Option 431)
Using the Arbitrary Waveform Generator

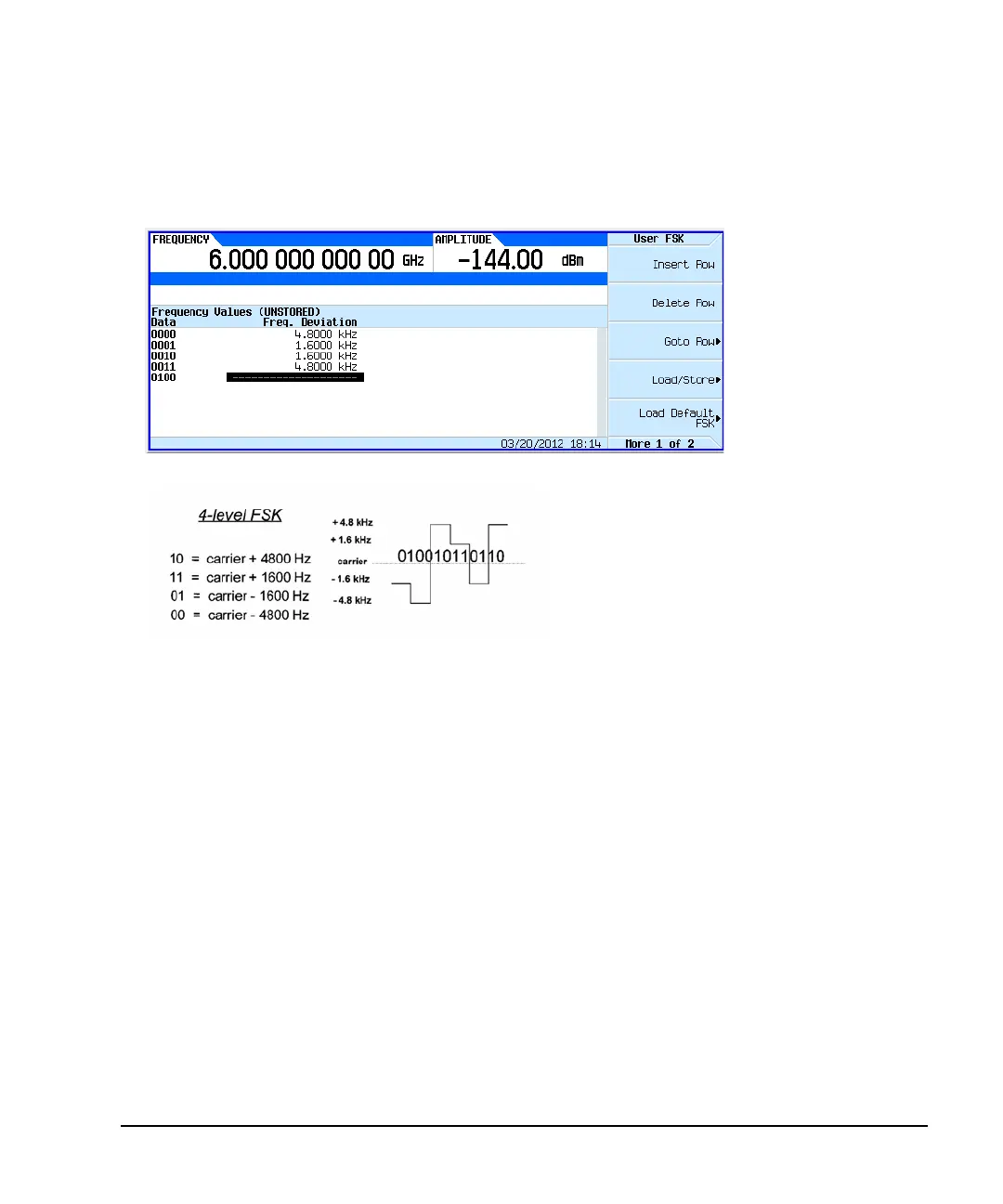

Figure 13-22 FSK Table Editor
Mapping I/Q Values with the I/Q Table Editor
In most digital radio systems, the frequency of the carrier is fixed so only phase and magnitude need
to be considered. The phase and magnitude of symbols can be represented as a discrete point in the
I/Q plane. I represents "in phase" and Q represents "quadrature".
Mode > Real-Time Custom Modulation > Modulation Setup > Modulation Type > Define User FSK
For details on each key, use key
help as described on page 44.
