Ethernet Connectivity Fault Management (ETH-CFM)
Page 102 7750 SR OS Services Guide
Ethernet service OAM can be deployed in the broadband access network.
There are two models, residential and wholesale (Figure 25 and Figure 26).

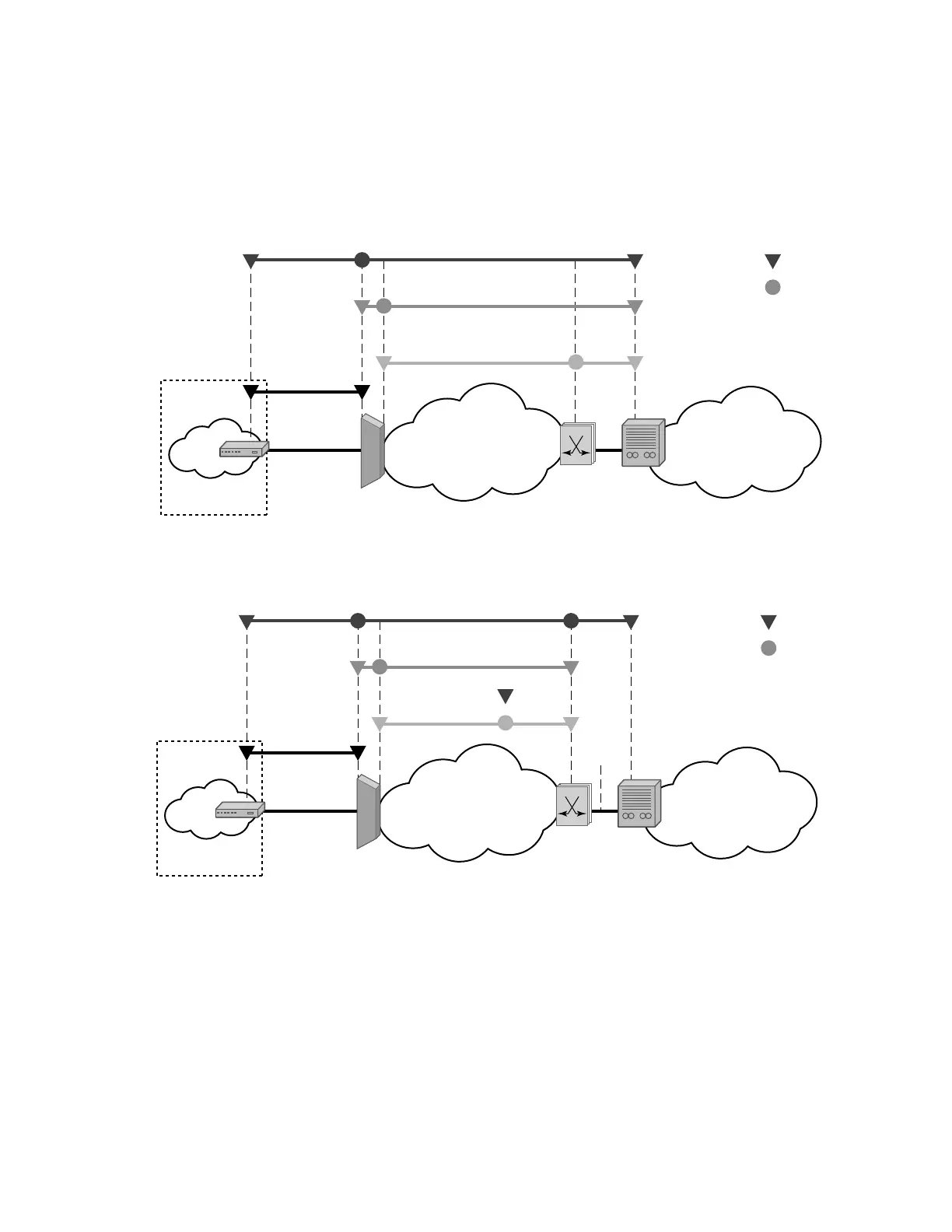

Figure 25: Ethernet OAM Model for Broadband Access - Residential
Figure 26: Ethernet OAM Model for Broadband Access - Wholesale
As shown in Figure 25 and Figure 26, the following functions are supported:
• CFM can be enabled or disabled on a SAP or SDP basis.
