ATM VLL For End-to-End ATM Service
Ap ipe Ser vices

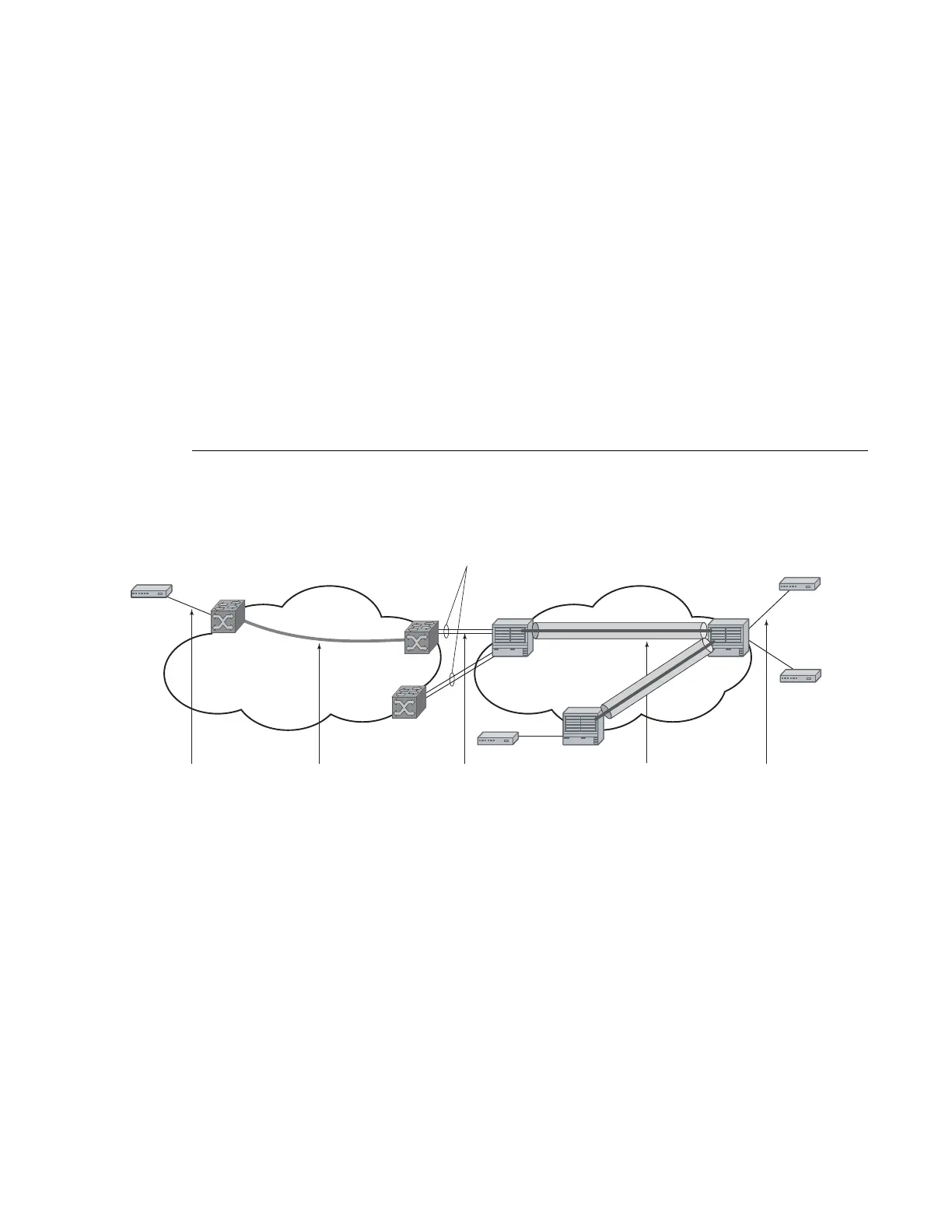

Figure 31: ATM VLL for End-to-End ATM Service
ATM VLLs (Apipe) provide a point-to-point ATM service between users connected to 7750 SR
nodes on an IP/MPLS network. Users are either directly connected to a 7750 PE or through an
ATM access network. In both cases, an ATM PVC (for example, a virtual channel (VC) or a virtual
path (VP)) is configured on the 7750 PE. This feature supports local cross-connecting when users
are attached to the same 7750 PE node. VPI/VCI translation is supported in the ATM VLL.
PE1, PE2, and PE3 receive standard UNI/NNI cells on the ATM Service Access Point (SAP) that
are then encapsulated into a pseudowire packet using the N:1 cell mode encapsulation or AAL5
ATM IP/MPLS
ATM CellsATM Cells ATM CellsATMoMPLS
MPLS
POS/GigE
ATM Cells
