Alcatel-Lucent 7750 SR - Figure 84: Ingress VLAN Translation; Ingress VLAN Translation

Page 508 7750 SR OS Services Guide
Ingress VLAN Translation

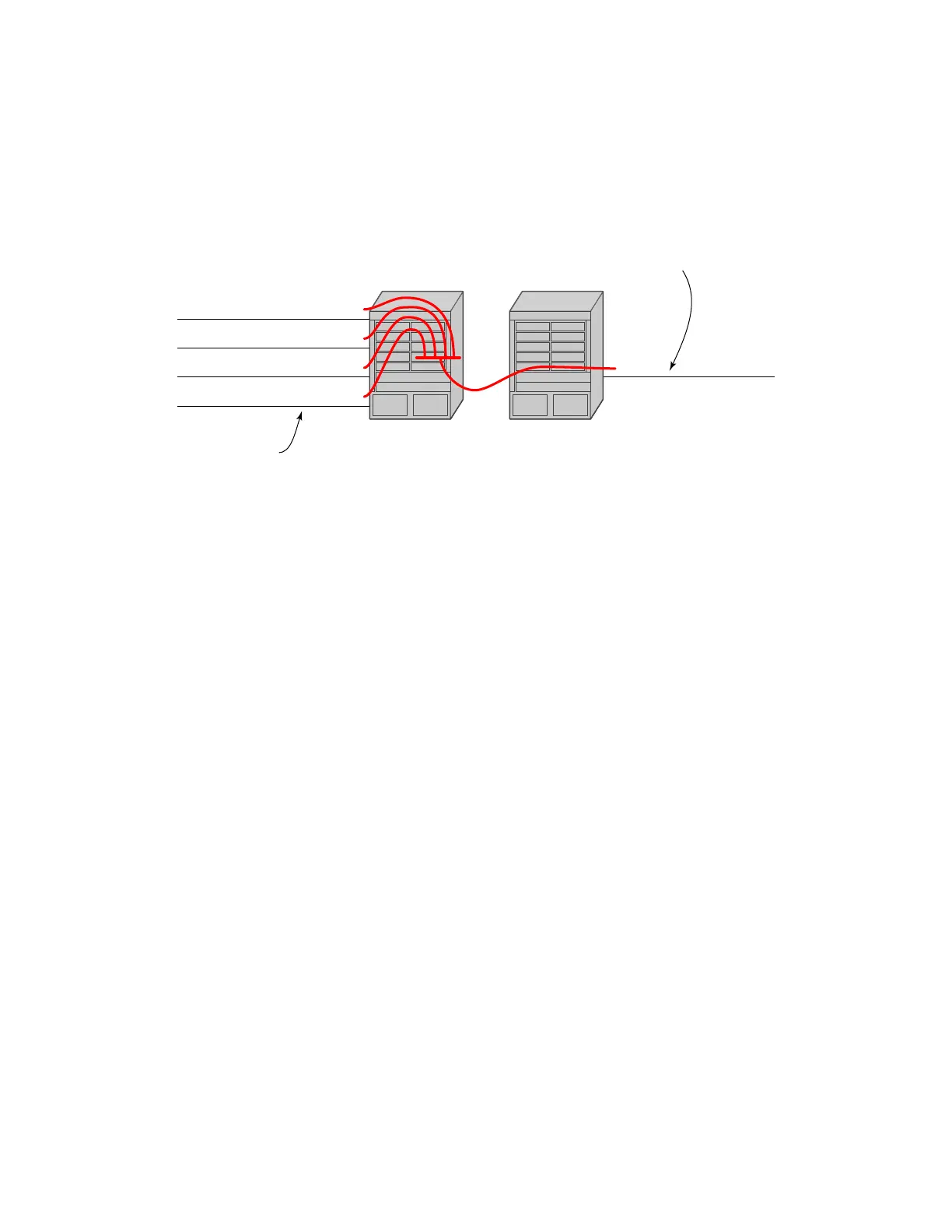

Figure 84: Ingress VLAN Translation
OSSG146
VLAN 1 - 4000
Aggregation Side:
Null Encapsulated Port Packets
Have Unique VLAN per Customer
Access Side:
Dot 1q Encapsulated Port Explicit
Sap for Every Customer VLAN
VLAN 1 - 1000 1/1/1:100
1/1/2:100
1/1/3:100 1/1/10
1/1/4:100
VLAN 1 - 1000
VLAN 1 - 1000
VLAN 1 - 1000
