Alcatel-Lucent 7750 SR - Frame Relay-To-ATM Interworking (FRF.5) VLL; Figure 41: Frame Relay-To-ATM Network Interworking (FRF.5) VLL

Virtual Leased Line Services
7750 SR OS Services Guide Page 203
Frame Relay-to-ATM Interworking (FRF.5) VLL

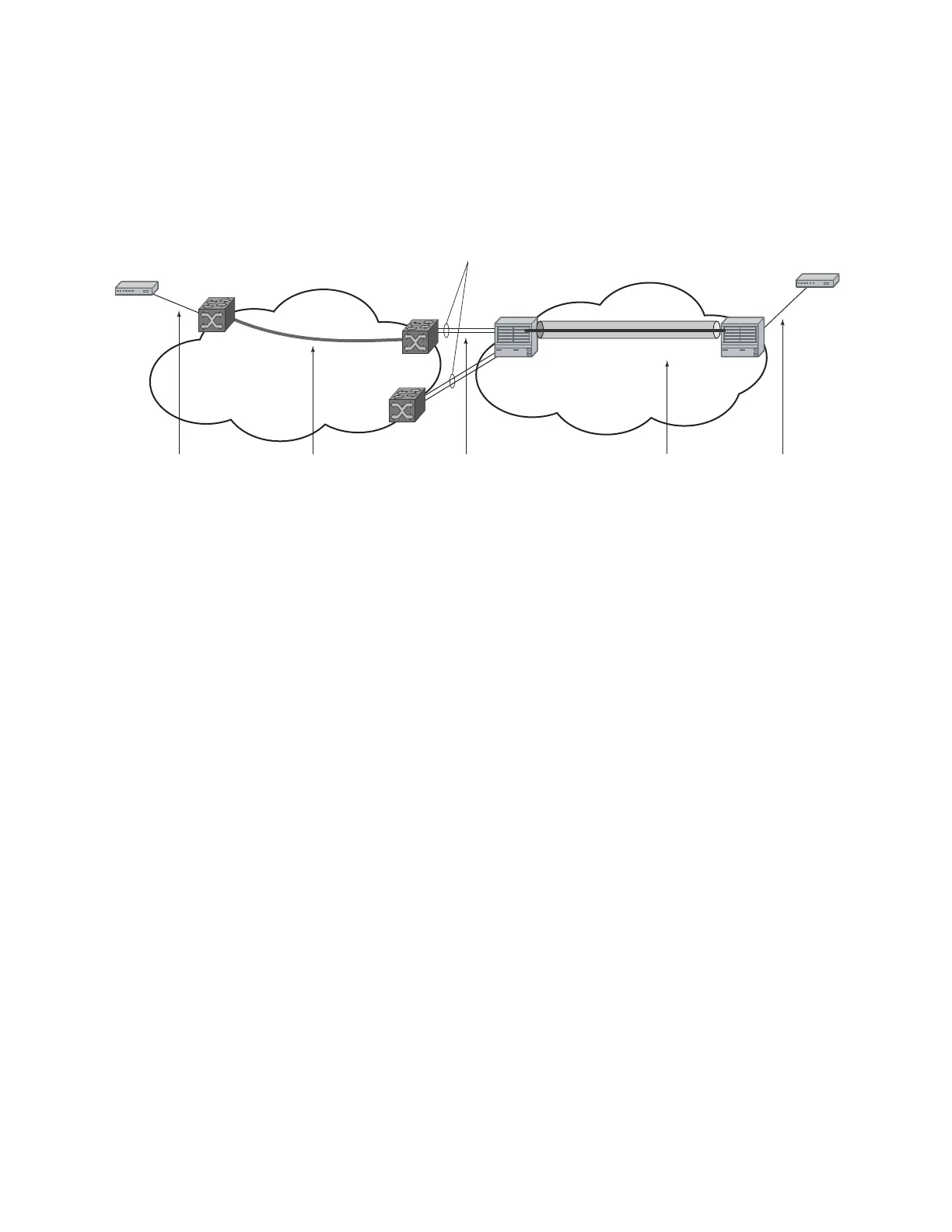

Figure 41: Frame Relay-to-ATM Network Interworking (FRF.5) VLL
Figure 41 provides an example of a point-to-point Frame Relay service between users where one
user is connected to an existing ATM network, the other to a 7750 PE node on an IP/MPLS
network.
This VLL is realized using an ATM AAL5 SDU pseudowire between the 7750 SR PE nodes. It is
configured by adding a FR SAP to an apipe service using vc-type atm-sdu. The 7750 SR PE2 node
performs an FRF.5 interworking function to interwork the ingress and egress data paths in addition
to the operations required in an FR and an ATM VLL.
The pseudowire is initiated using Targeted LDP signaling as specified in draft-ietf-pwe3-control-
protocol-xx.txt. The SDP can be of an MPLS or a GRE type.
