Continuity Check (CC)
A Continuity Check Message (CCM) is a multicast frame that is generated by an MEP to its
remote MEPs in the same MA. The CCM does not require a reply message. To identify faults, the
receiving MEP maintains an MEP database with the MAC addresses of the remote MEPs that it
expects to maintain connectivity checking. The MEP database can be provisioned manually or
dynamically built via learning. Only static provisioning is supported. When there is no CCM from
a monitored remote MEP in a pre-configured period, the local MEP raises an alarm.

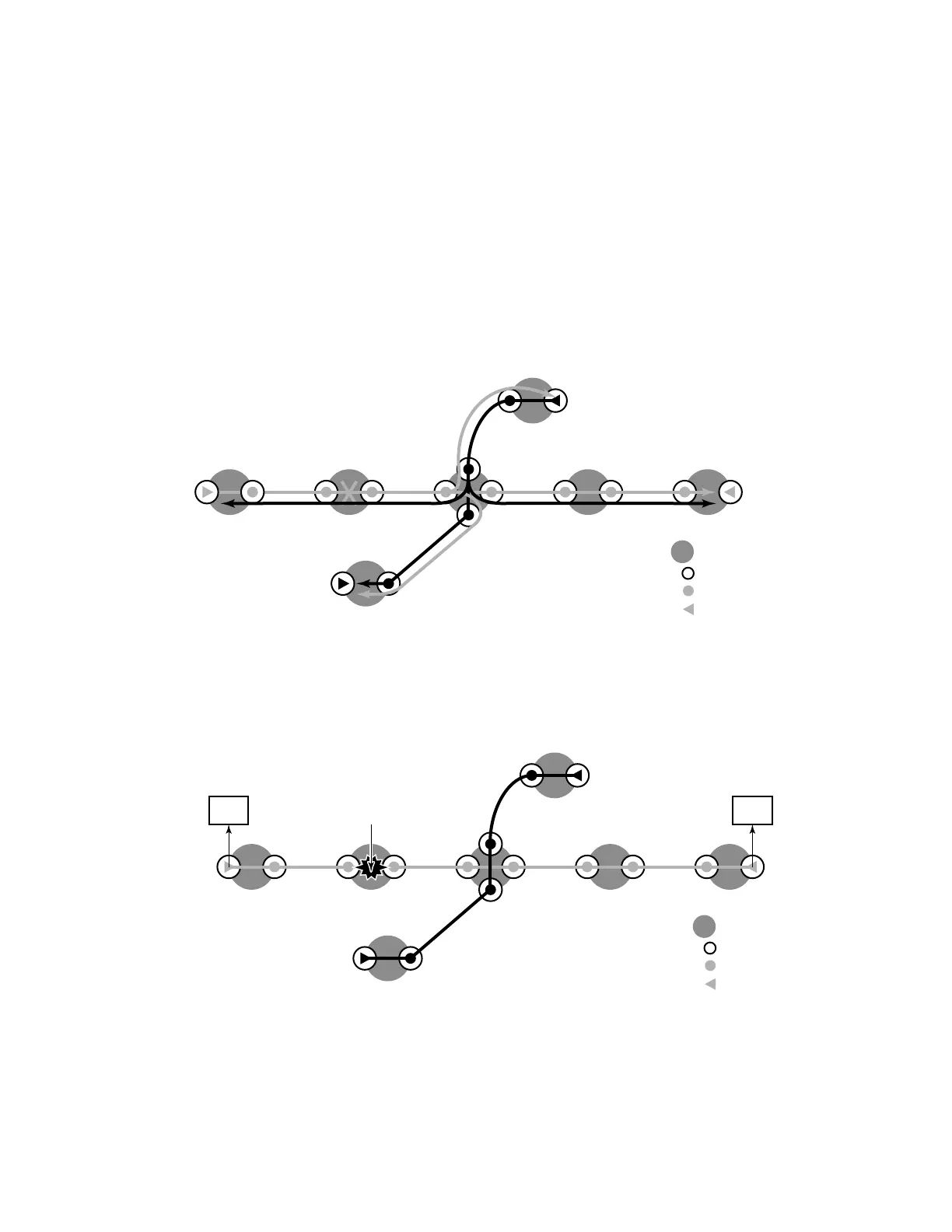

Figure 29: CFM Continuity Check
Figure 30: CFM CC Failure Scenario
