Configuring VLL Resilience for a Switched Pseudowire Path

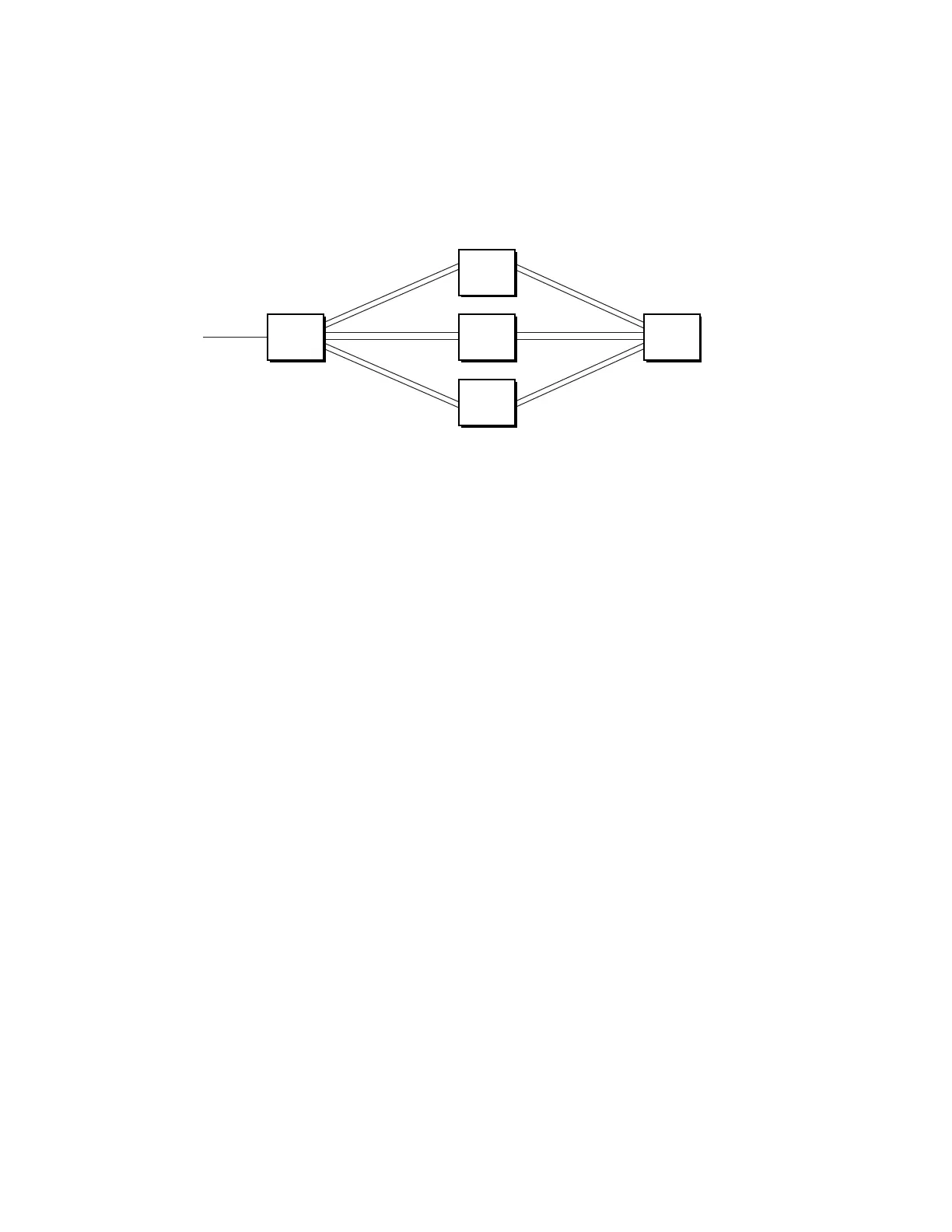

Figure 56: VLL Resilience with Pseudowire Switching
T-PE1
The following displays an example for the configuration on TPE1.
*A:ALA-48>config>service>epipe# info
----------------------------------------------
endpoint "x" create
exit
endpoint "y" create
exit
sap 1/1/1:100 endpoint "x" create
exit
spoke-sdp 1:100 endpoint "y" create
precedence primary
exit
spoke-sdp 2:200 endpoint "y" create
precedence 1
exit
spoke-sdp 3:300 endpoint "y" create
precedence 1
exit
no shutdown
----------------------------------------------
*A:ALA-48>config>service>epipe#
OSSG247
S-PE-1
S-PE-2
spoke-sdp 1:100
spoke-sdp 2:200 spoke-sdp 4:400
spoke-sdp 3:300
sap 1/2/1:100
sap 1/1/1:100
spoke-sdp 6:600
S-PE-3
T-PE-1 T-PE-2
