9-2 PLC-5C to PLC-5C Unscheduled Messaging Over Two ControlNet Networks
• Verify that the 1784-KTCX15 driver card is configured as described on
page 2-3.
• Verify that all wiring and cabling is properly connected.
Create the Example Application
Perform the following steps to create the example application:
1. Start the RSLogix5 software

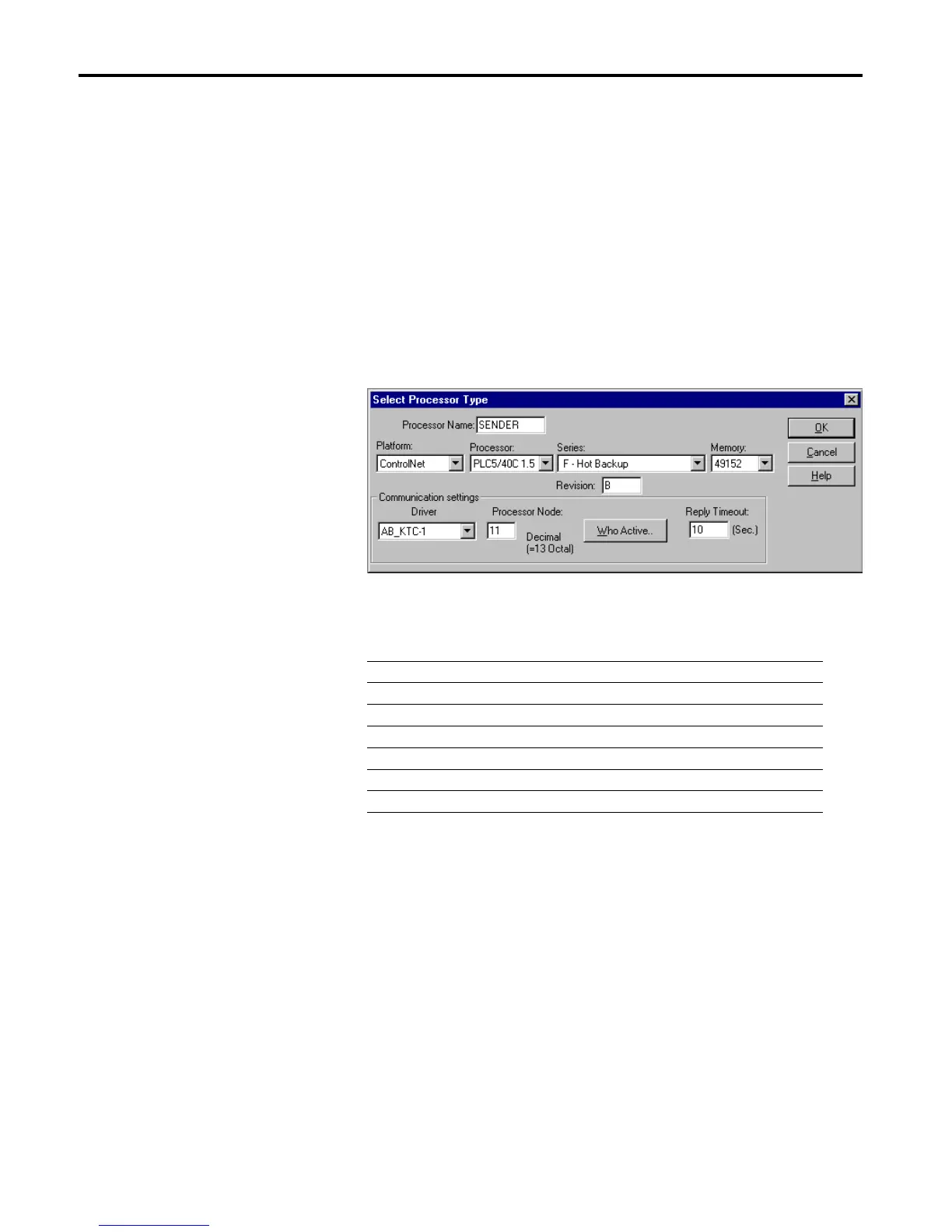

2. From the File menu, select New. The Select Processor Type window will
appear.
3. Enter the following information and click on OK.
• Ignore any prompts or warnings you receive about specifying
ControlNet project files. That is not necessary for this example.
In this field Select
Processor Name SENDER
Platform ControlNet
Processor (Enter your processor type)
Series (Enter your processor’s series)
Revision (Enter revision letter)
Driver AB_KTC-1
Processor Node 11
