10-12 Controlling I/O Over a ControlNet Network
Create the Ladder Logic Program

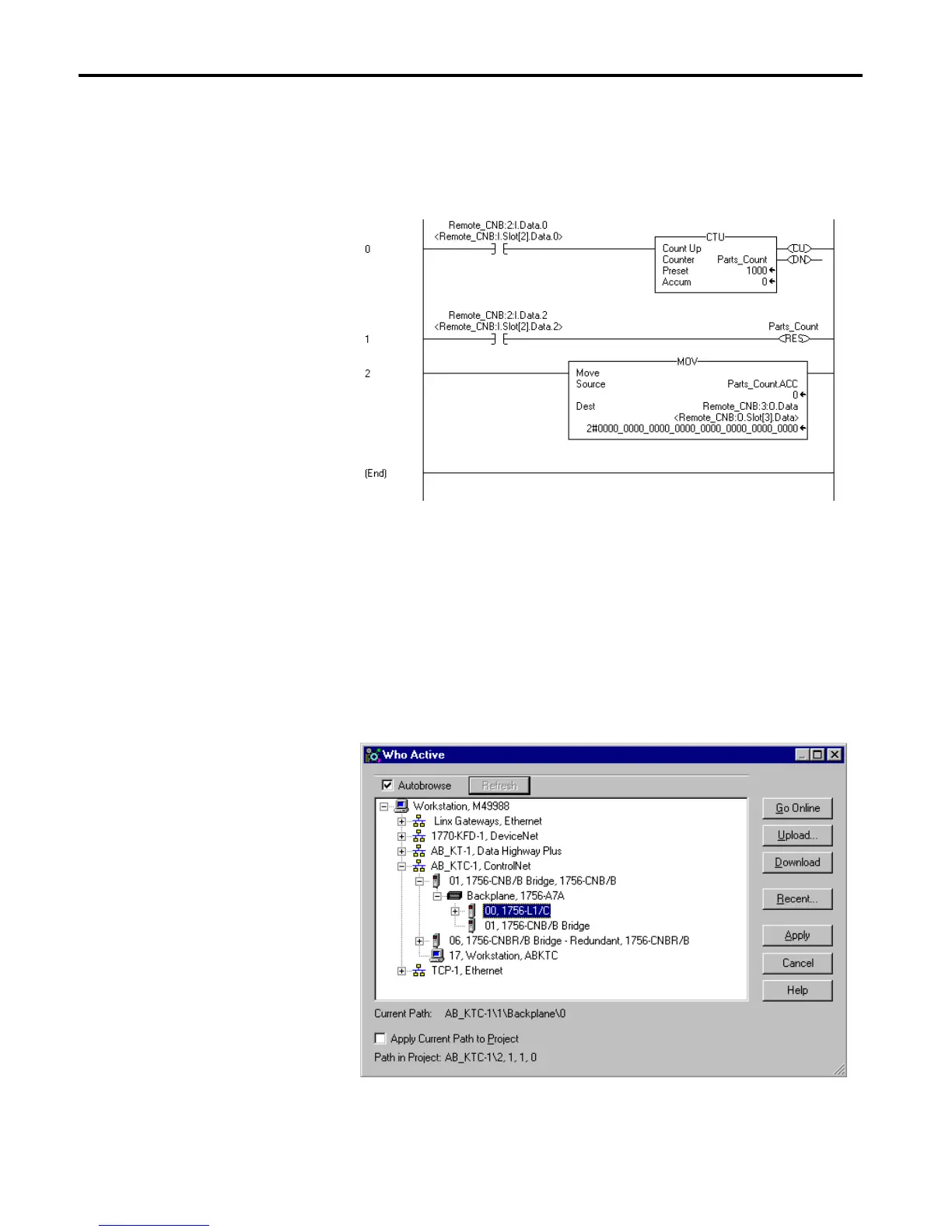

1. Double-click on Main Routine under the Main Program folder, and
enter the following program:
2. Save the program, using an appropriate name (e.g. “Remote_IO”).
Download the Program
(1)
1. Click on the Communications menu and select Who Active.
2. The Who Active window will appear (Your window may look different
depending upon the drivers and other devices you have installed).
(1)
This example uses RSLogix5000 version 2.25. See Appendix D if you are using version 2.10 or earlier.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
