6-6 Logix5550 Controller to PLC-5C: Scheduled Communications
Download
(1)
and Run the Program

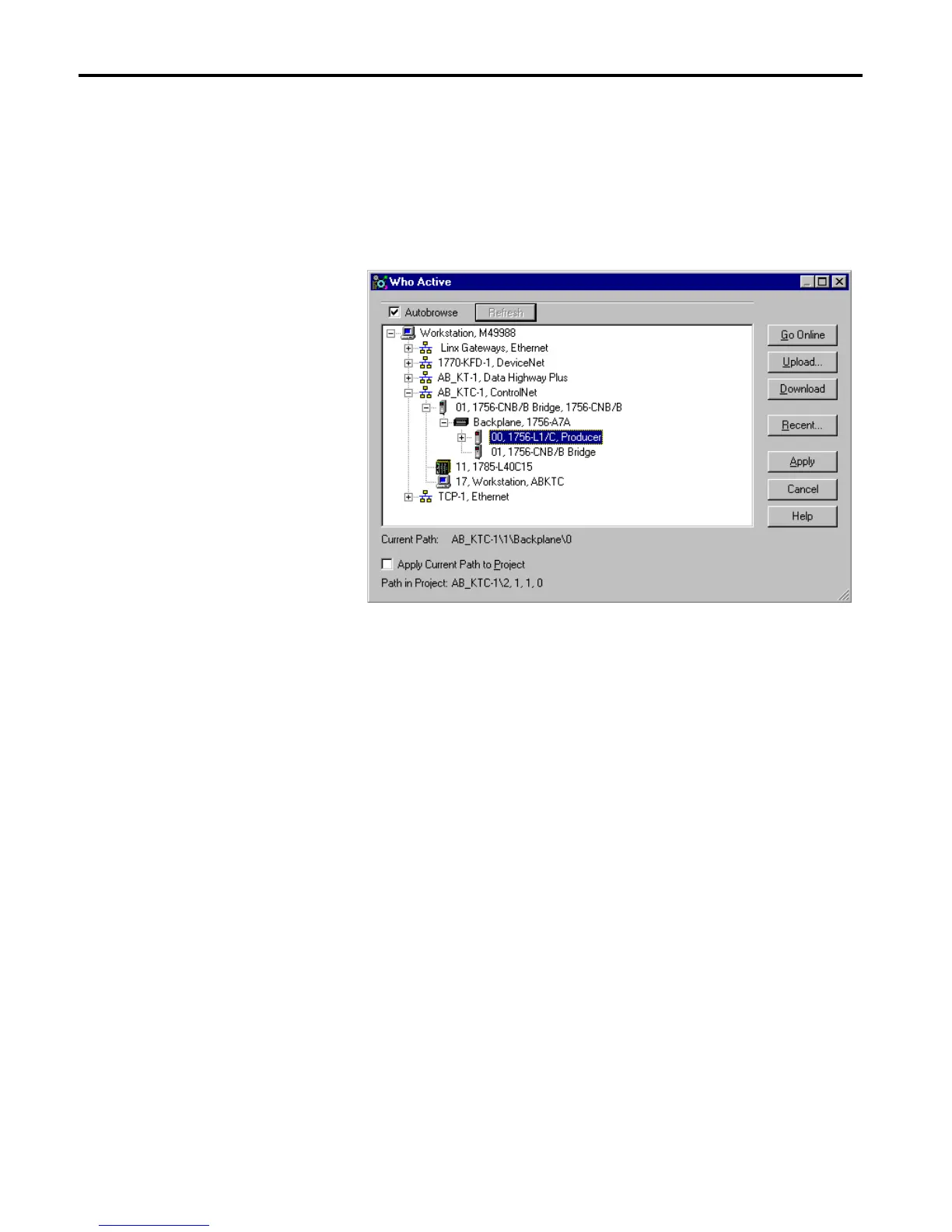

1. Click on the Communications menu and select Who Active.
2. The Who Active window will appear (Your window may look different
depending upon the drivers and other devices you have installed).
3. Drill down the tree through ControlNet driver and the 1756-CNB
module at node 1 to the controller in slot 0.
4. Highlight the controller and click on the Download button.
5. After downloading is complete, put the controller in Run mode.
6. Minimize RSLogix5000.
(1)
This example uses RSLogix5000 version 2.25. See Appendix D if you are using version 2.10 or earlier.
