Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
11-2 Adding an I/O Chassis to an Existing ControlNet Network
Set Up the Example Application

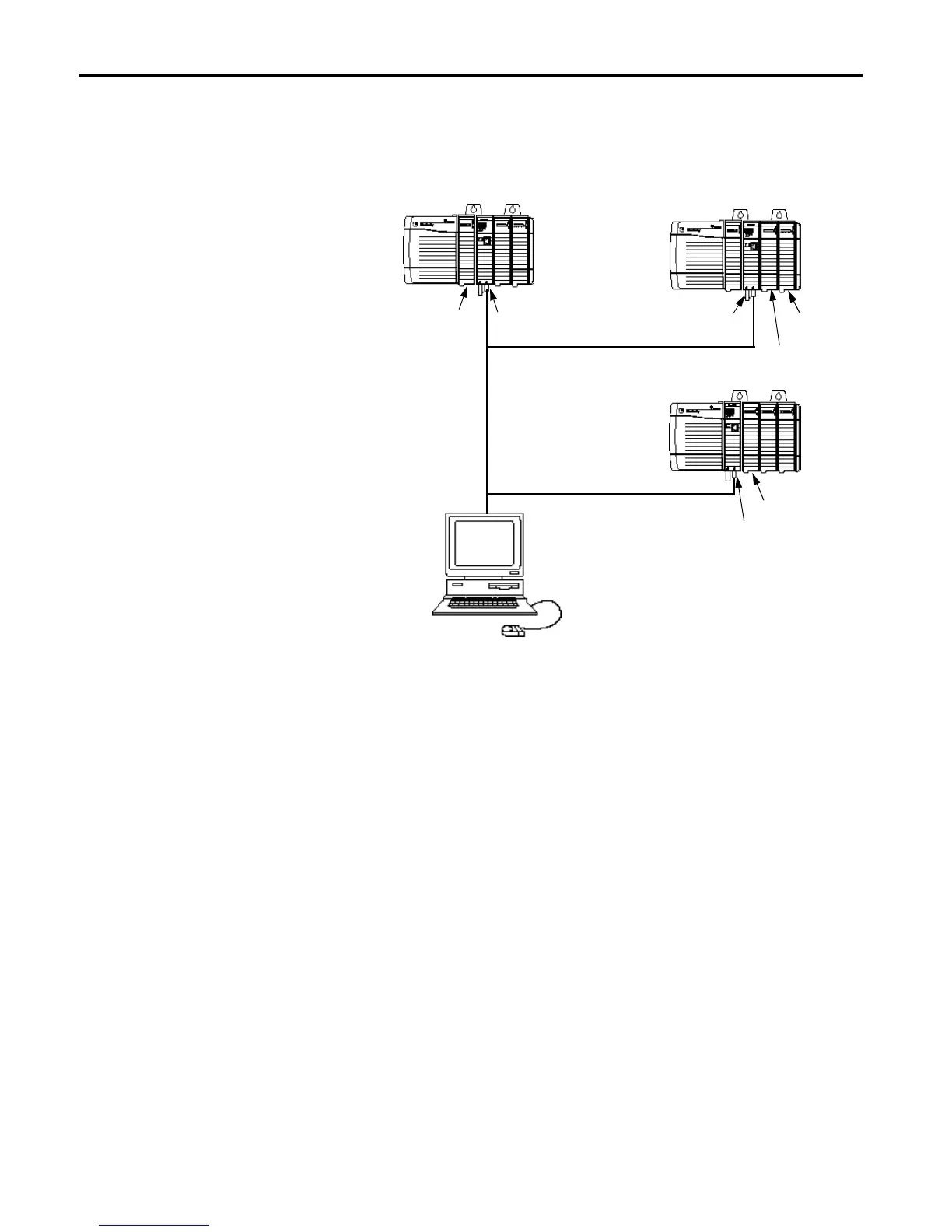

Change the system configuration of the previous chapter to that shown
below by adding the second remote chassis with a 1756-CNB module and a
1756-OF6VI analog output module:
• Verify that the Logix5550 controller, I/O modules, and 1756-CNB
modules are in the correct slots as shown above.
• Verify that the node addresses for the 1756-CNB modules are 1, 6, and 3
as shown.
• Verify that the KTCX15 driver card is configured as described on
page 2-3.
• Verify that all wiring and cabling is properly connected.
Create the Example Application
Perform the following steps to create the example application:
1. Open the RSLogix5000 software.
2. From the File menu, open the program created for the example
application in chapter 10 (i.e., “Remote_IO”).
3. Save the program as Remote_IO_2.
ControlNet
Logix5550
1756-CNB
(Node 1)
1756-CNB
(Node 6)
Local
Chassis
Remote
Chassis
PC with
1784-KTCX15
Interface
Slot 0 1
Slot 1 2 3
1756-IB16
Digital Input
1756-OB16I
Digital Output
Controller
Network
#1
Remote
Chassis
#2
1756-CNB
(Node 3)
1756-OF6VI
Analog Output
Slot 0 1

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
