Installing the ControlNet Network 2-3
Configuring the 1784-KTCX15 Card
After installing the card in the computer, you must run RSLinx to configure
the driver.
1. Start the RSLinx software.
2. Select Configure Drivers from the Communications menu.

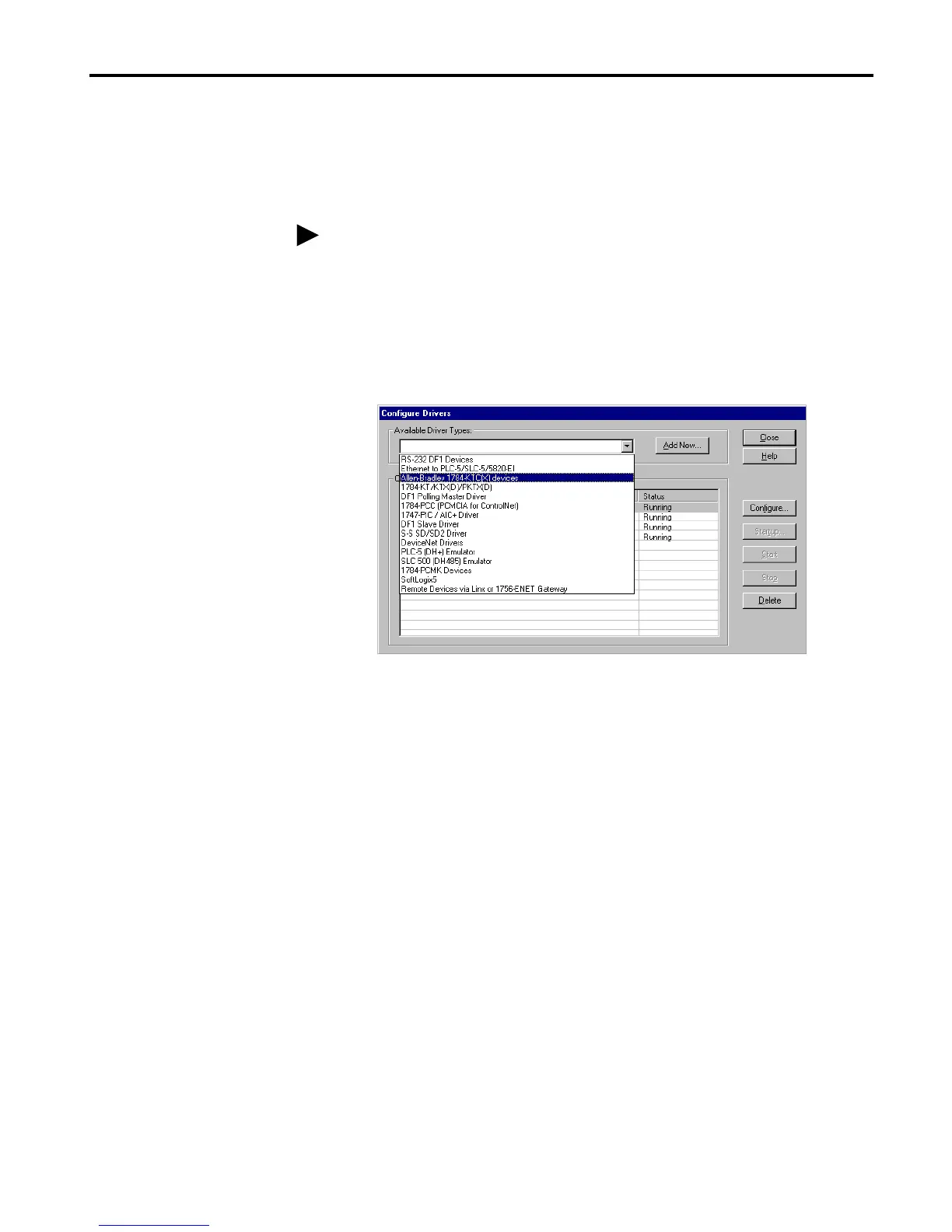

The following window will appear:
3. Select the Allen-Bradley 1784-KT/KTC(X) device from the pull-down
list and click on Add/New.
4. When prompted for a name for the new driver, select the default name
assigned by the system, i.e., AB_KTC-1.
For more information on installing and using RSLinx see the RSLinx Lite
User’s Guide, publication 9399-WAB32LUG.
