8-10 PLC-5C to Logix5550 Controller: Scheduled Communications
Add the Producer to the I/O Configuration
I/O configuration is done using the project window on the left side of the
screen.

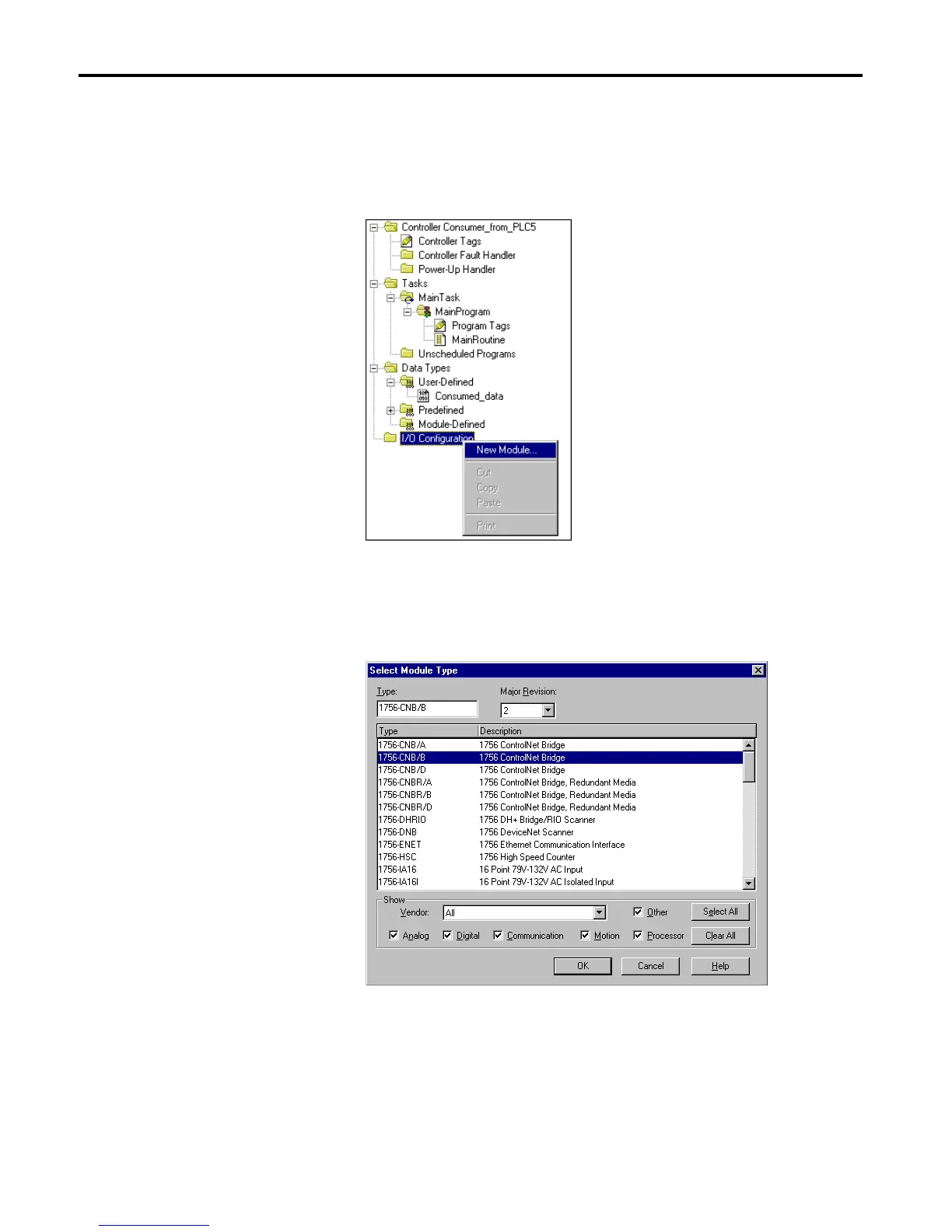

1. Right-click on the I/O Configuration folder in the project window and
select New Module from the pop-up window that appears.
The Select Module Type window will appear:
2. Select the 1756-CNB/B or 1756-CNBR/B module and click on OK.
