Allocating Communication Connections A-5
To configure an I/O module for a rack optimized connection, you select the
Rack Optimization communication format. Most discrete I/O modules
support a rack optimized connection. If this option does not appear when
you are selecting communication format for an I/O module, the module
does not support the rack optimized connection.
Combining direct and rack optimized connections
A remote chassis can have both a rack optimized connection and direct
connections to analog or digital I/O. In this example, the owner controller
uses a rack optimized connection to communicate with two digital I/O
modules. The owner controller also uses a direct connection to
communicate with an analog module in the same chassis.

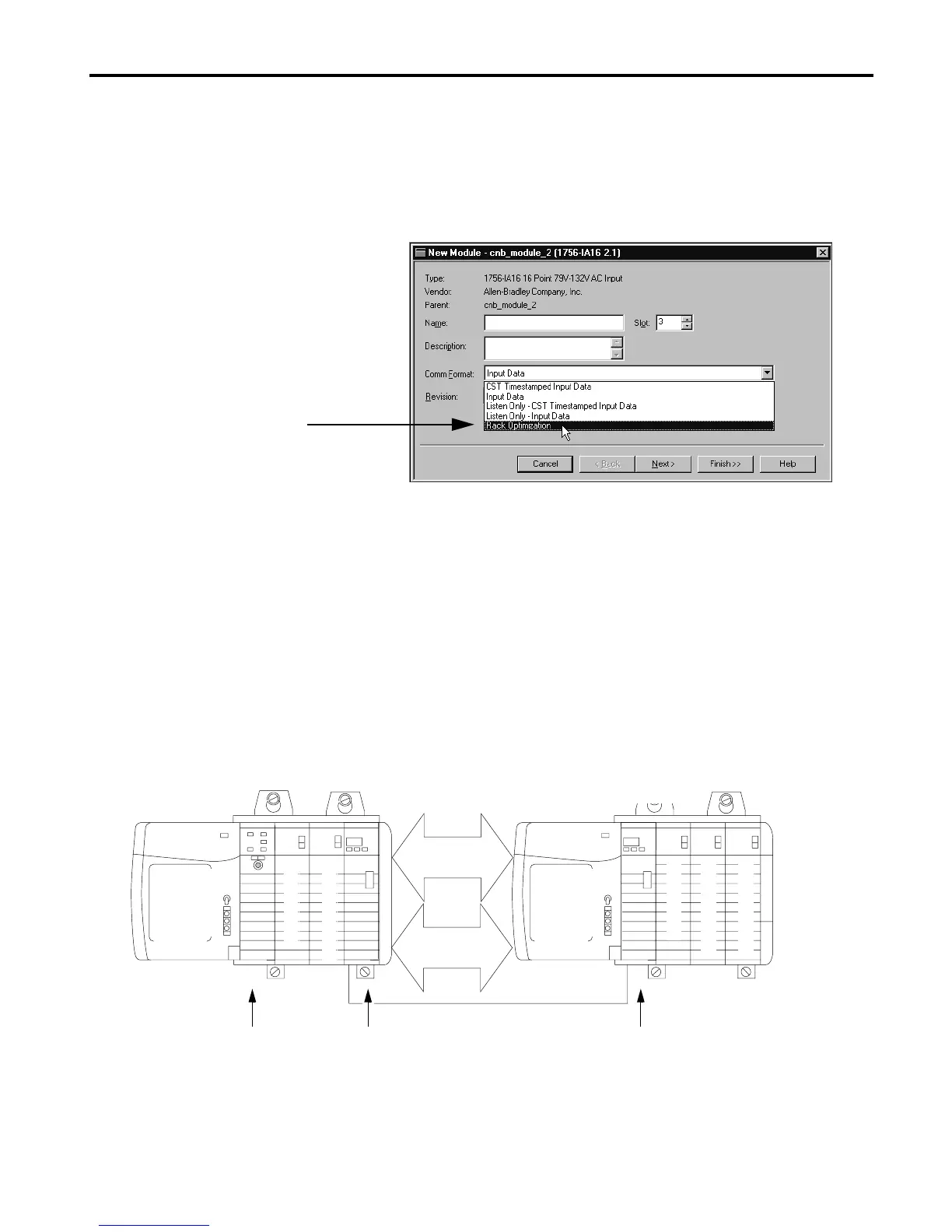

Select Rack Optimized for a
rack connection
Using a Rack Optimized Connection and a Direct Connection with I/O in a Remote Chassis
Local chassis Remote chassis
I
N
P
U
T
A
N
A
L
O
G
O
U
T
P
U
T
ControlNet
41030
Rack optimized
connection
Slot 3 RPI = 25mS
I
N
P
U
T
O
U
T
P
U
T
Owner Logix 5550
ControlNet
ControlNet
Interface module
Interface ModuleController

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
