1756-6.5.3 - December 1999
PLC-5C to Logix5550 Controller: Scheduled Communications 8-13

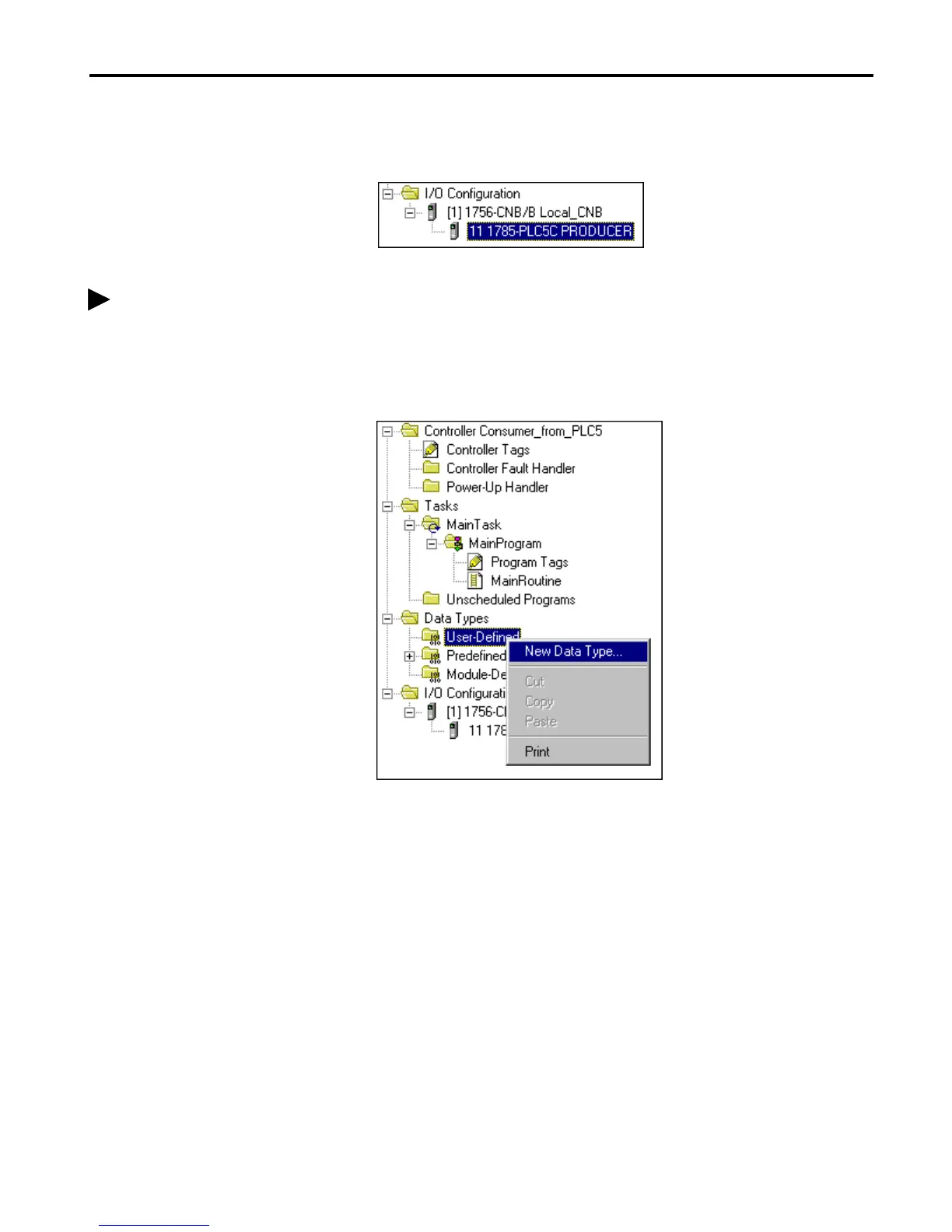

The Producer PLC5C will now appear indented under the local
1756-CNB in the I/O Configuration folder.
Create the Consumer Tags
The consumer tags are created using the project window on the left side of
the screen. To consume scheduled I/O, you have to create a User-Defined
data type.
1. Right-click on the User-Defined folder under Data Types and select
New Data Type.
See Appendix B for additional
information on consumer tags.
