8-14 PLC-5C to Logix5550 Controller: Scheduled Communications

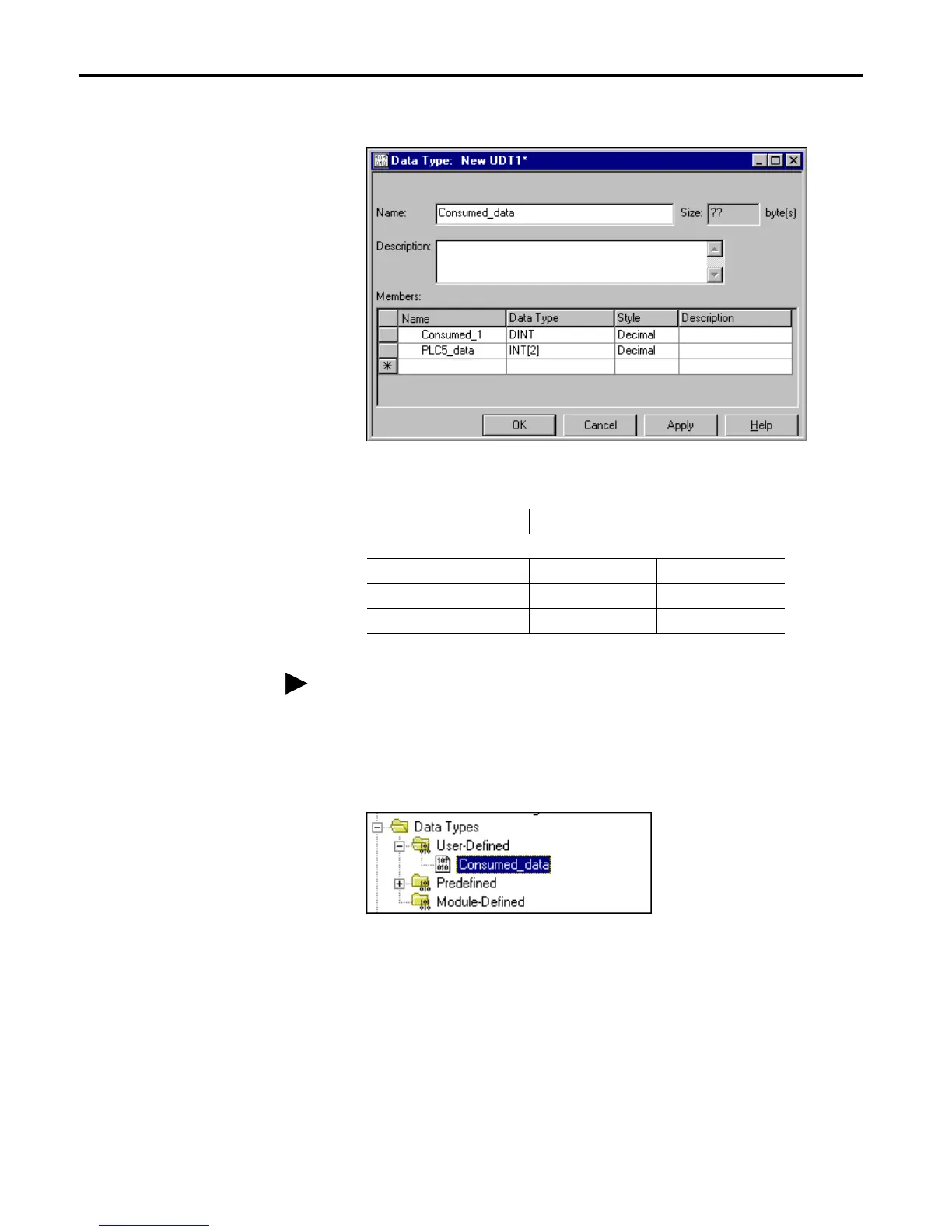

The Data Type configuration window will appear:
2. Enter the following Data Type parameters:
3. Click on OK.
The new data type will appear under the User-Defined folder.
Name Consumed_data
Members
Name Data Type Style
Consumed_1 DINT Decimal
PLC5_data INT[2] Decimal
See Appendix B and the Logix5550 Controller User Manual, publication
1756-6.5.12, for more information on creating consumed tags.
