Logix5550 Controller to PLC-5C: Unscheduled Messaging 5-7
Test the Example Application
Perform the following steps to test the example application:
1. Start the RSLogix5 software.
2. From the Comms menu in RSLogix5, select System Comms.

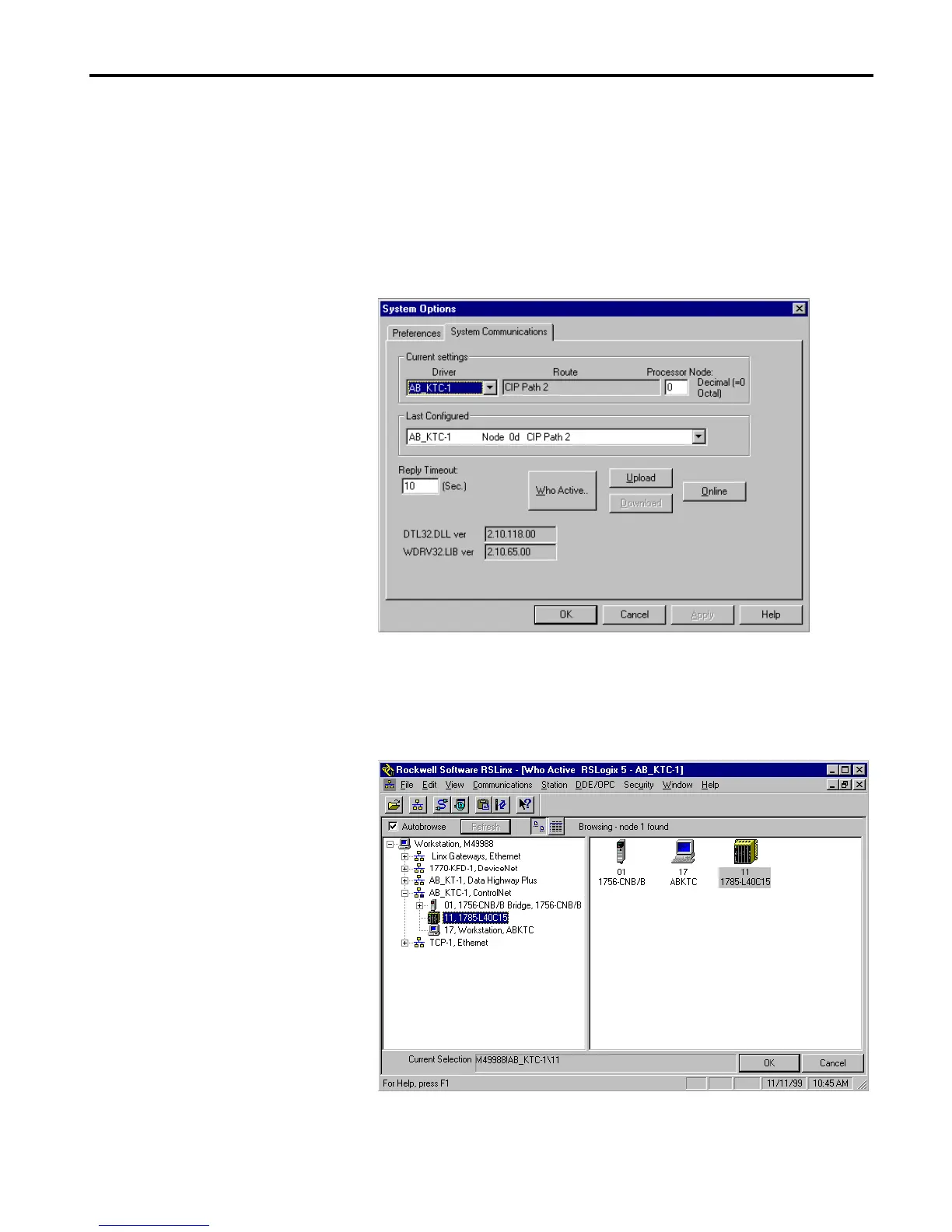

The System Options window will appear with the System
Communications tab open.
3. Select AB_KTC-1 as the Driver and click on the Who Active button.
The RSWho window will appear (Your window may appear different,
depending on the drivers and devices installed on your system).
