Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
Controlling I/O Over a ControlNet Network 10-7

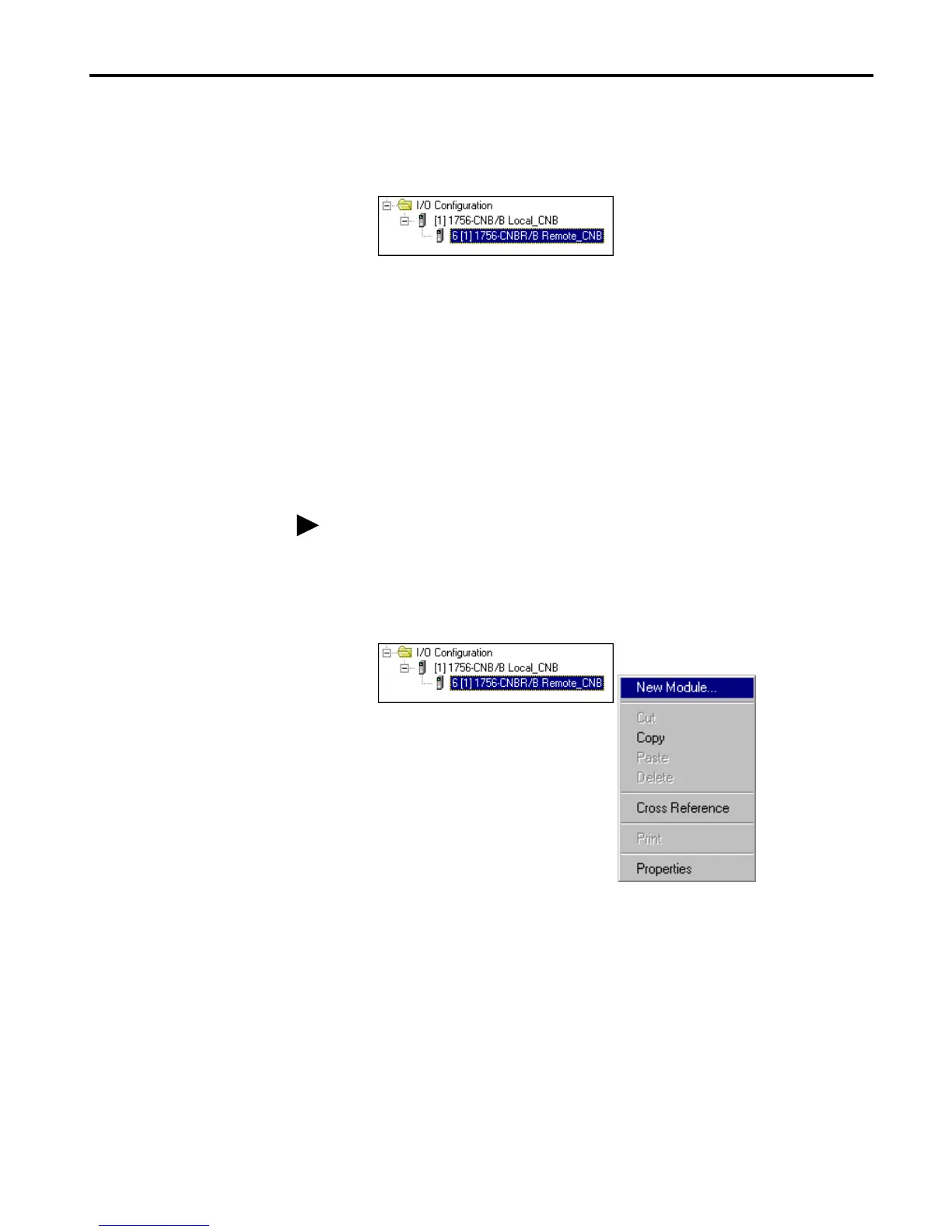

6. Click on the Finish button to accept the configuration. The remote
1756-CNB module should appear indented under the local 1756-CNB in
the I/O Configuration folder.
Add the Remote I/O Modules to the I/O Configuration
You must now add the remote I/O modules to the I/O Configuration List
under the remote 1756-CNB module.
In this example, you will add a a 1756-IB16 digital input module and a
1756-OB16I digital output module with standard configurations. Use these
steps as a guide if you are configuring different I/O modules for your
system.
Add the Remote Digital Input Module
1. Right click on the remote 1756-CBN under the I/O Configuration folder
and select New Module.
This example application uses the I/O module default configurations. For
information on altering the default configurations see the ControlLogix
Digital I/O Module User Manual, publication 1756-6.5.8.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
