10-6 Controlling I/O Over a ControlNet Network

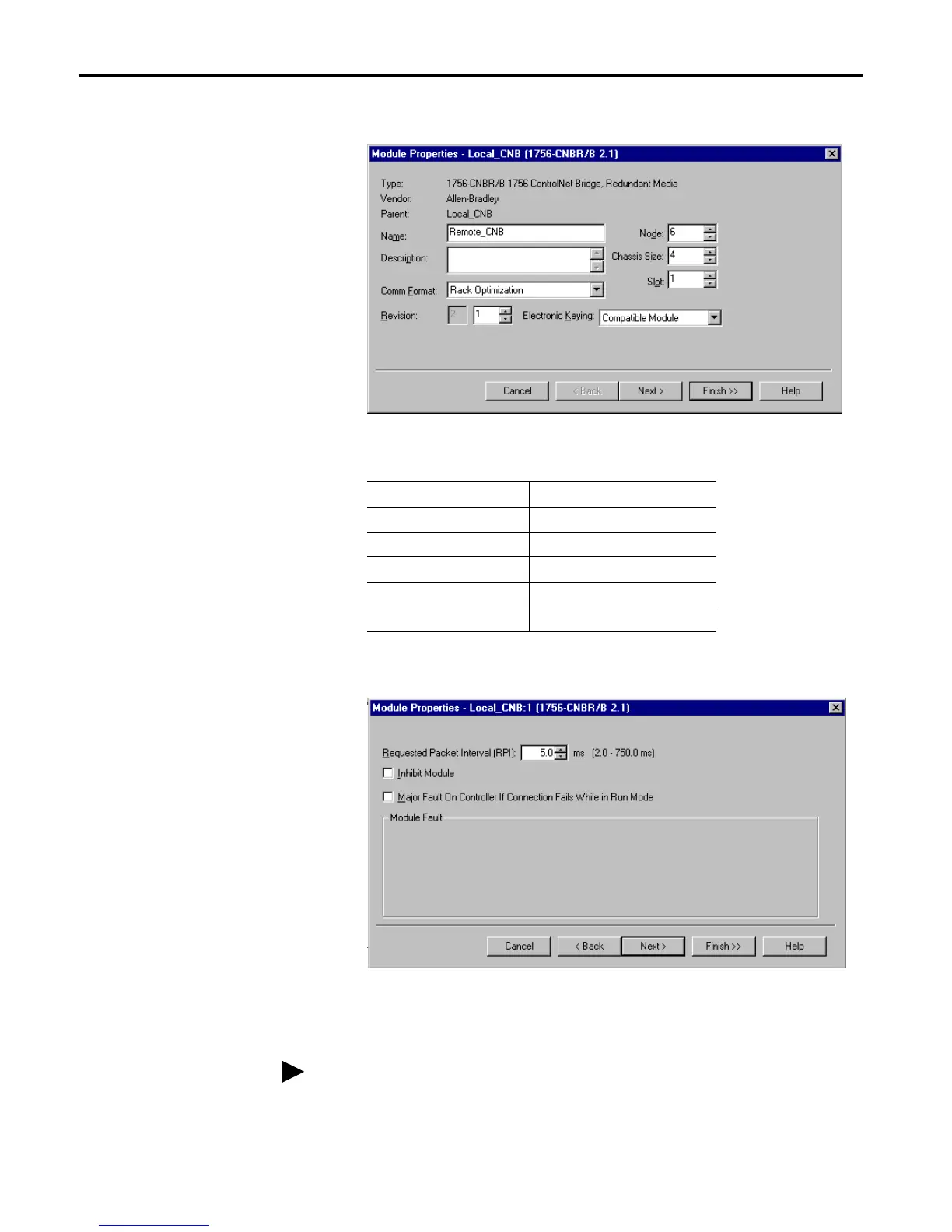

The Module Properties window will appear.
3. Enter the following parameters:
4. Click on Next. The following page will appear:
5. Make sure the Requested Packet Interval (RPI) is 5ms or greater for this
example.
Name Remote_CNB
Node 6
Chassis Size (Enter your chassis size)
Slot 1
Comm Format Rack Optimization
Electronic Keying Compatible Module
Remember that you cannot set the RPI faster than the NUT. See page 1-7.
