Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
6-2 Logix5550 Controller to PLC-5C: Scheduled Communications
• Verify that the Logix5550 controller and the 1756-CNB module are in
slots 0 and 1 as shown.
• Verify that the node address for the 1756-CNB module is 1 and the node
address for the PLC-5C processor is 11 as shown.
• Verify that the KTCX15 driver card is configured as described on
page 2-3.
• Verify that all wiring and cabling is properly connected.
Create the Logix5550 Producer
Application
Perform the following steps to create the Logix5550 producer application.
1. Open the RSLogix5000 software.

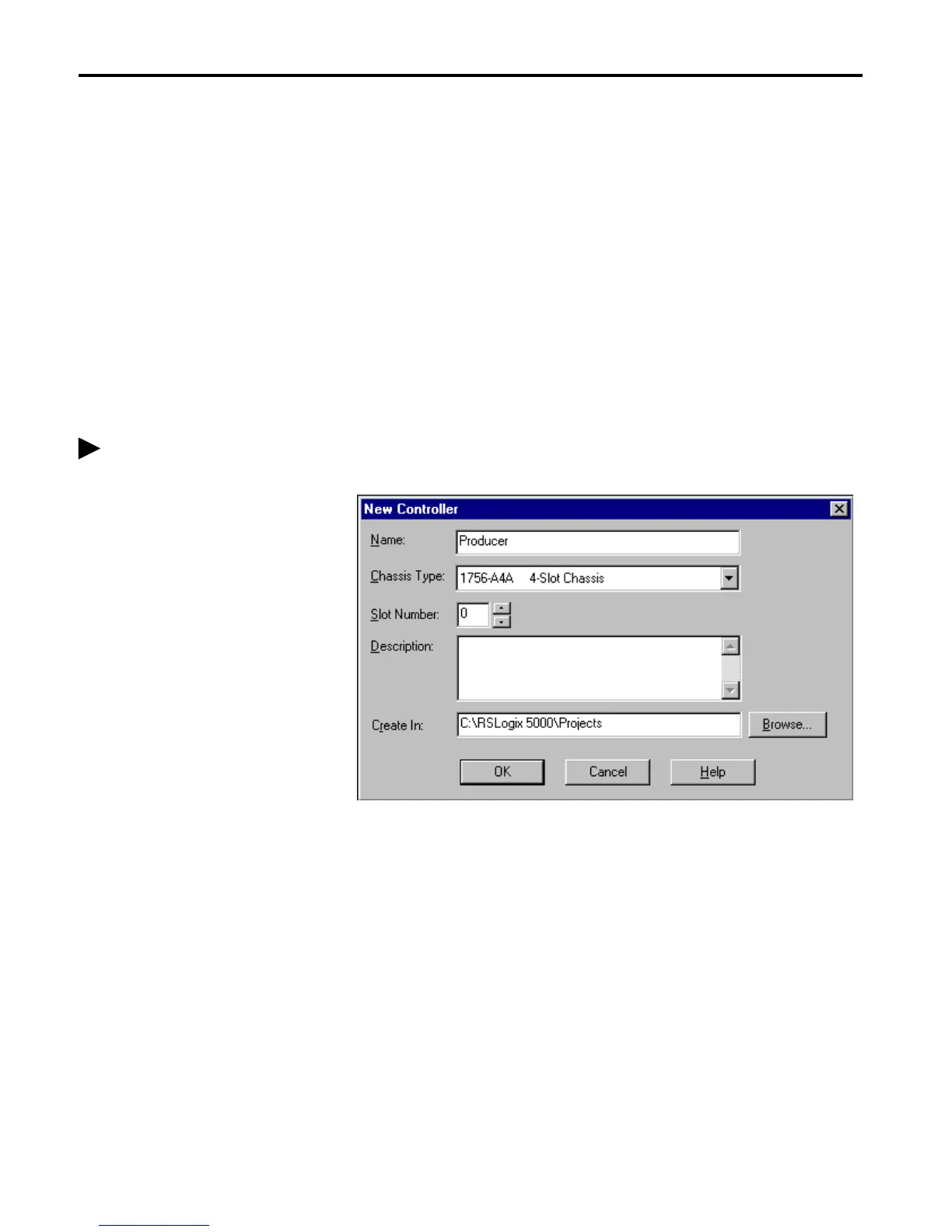

2. From the File menu, select New. The New Controller window will
appear.
3. Enter an appropriate name for the Controller, e.g., “Producer.”
4. Select the correct Chassis Type, Slot Number of the Logix5550
controller, and folder where you want to save the file (Create In). Click
on OK.
The producer application here is the
same as that in chapter 4. If you
previously created that application,
open it in RSLogix5000 and download
it to the producer Logix5550
controller. Then proceed to Schedule
the Network Using RSNetWorx for
ControlNet on page 6-7.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
