Controlling I/O Over a ControlNet Network 10-15

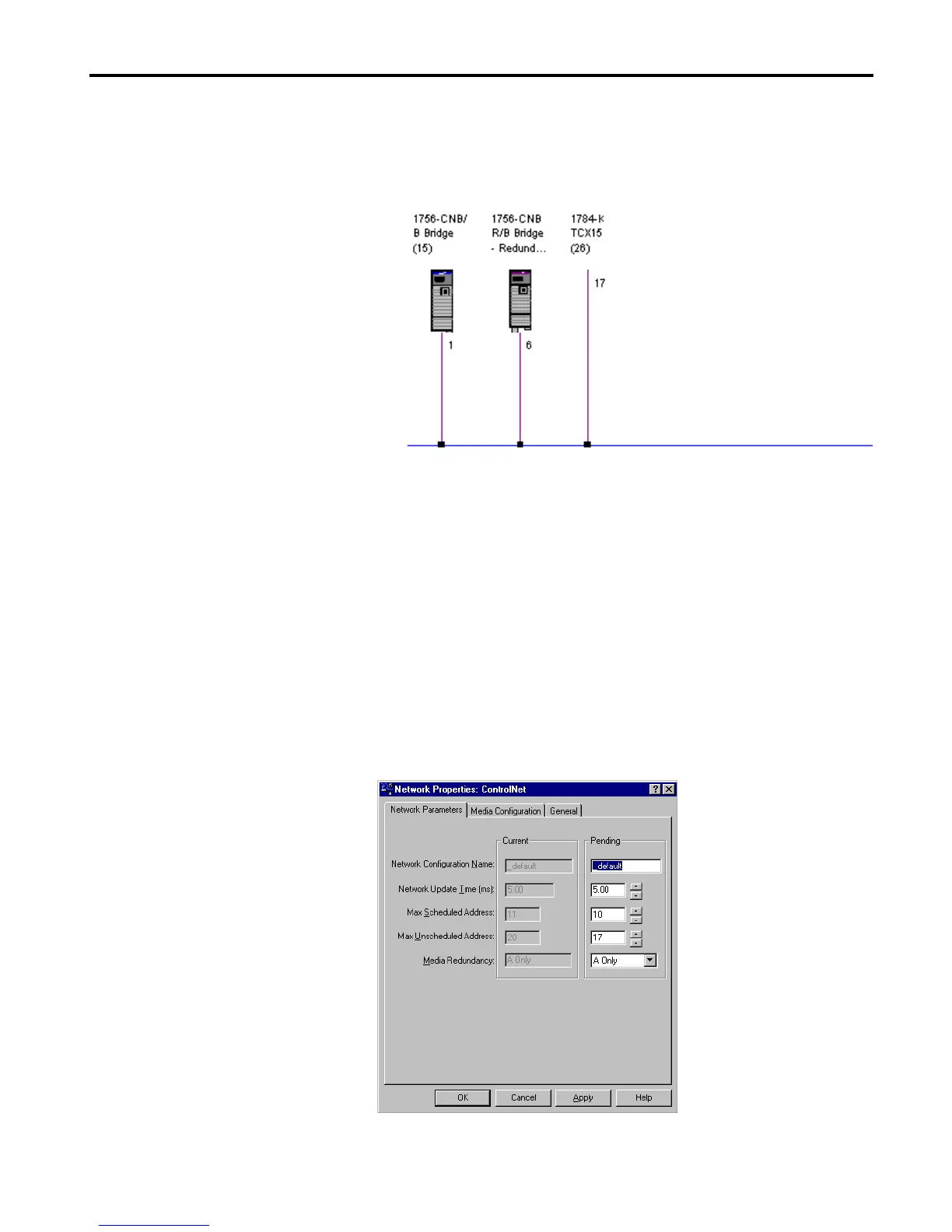

RSNetWorx will browse the network for the attached devices. When it is
done browsing, your network window should appear similar to that
shown below:
7. Verify that the devices and their network node addresses displayed are
correct.
Verify the Network Properties
Make sure that the network update time (NUT), Max Scheduled Address,
and Max Unscheduled Address are set correctly.
1. Select Network from the main menu bar and Properties from the
pull-down menu.
The Network Properties window will appear:
