Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
6-14 Logix5550 Controller to PLC-5C: Scheduled Communications

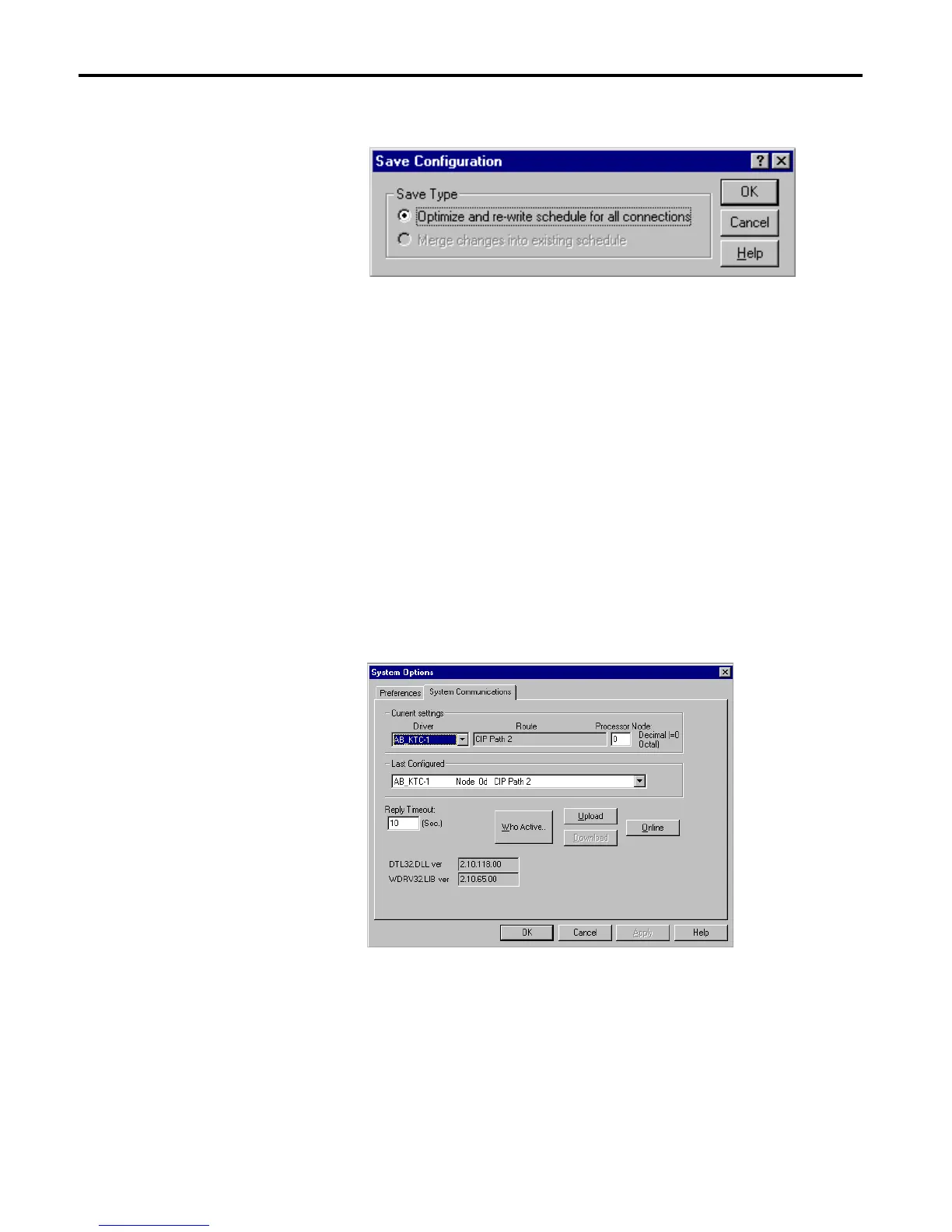

The following pop-up window will appear:
8. Select “Optimize and re-write schedule for all connections” and click
on OK.
9. Close the PLC-5 ControlNet Configuration window and Minimize the
RSNetWorx for ControlNet software.
Test the Communications
You now have the ControlNet network commissioned. Your last task is to
go online with the PLC-5C to test the communications.
1. Start the RSLogix5 software.
2. From the Comms menu, select System Comms.
The System Options window will appear with the System
Communications tab open.
3. Select AB_KTC-1 as the Driver and click on the Who Active button.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
