Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
Adding an I/O Chassis to an Existing ControlNet Network 11-15

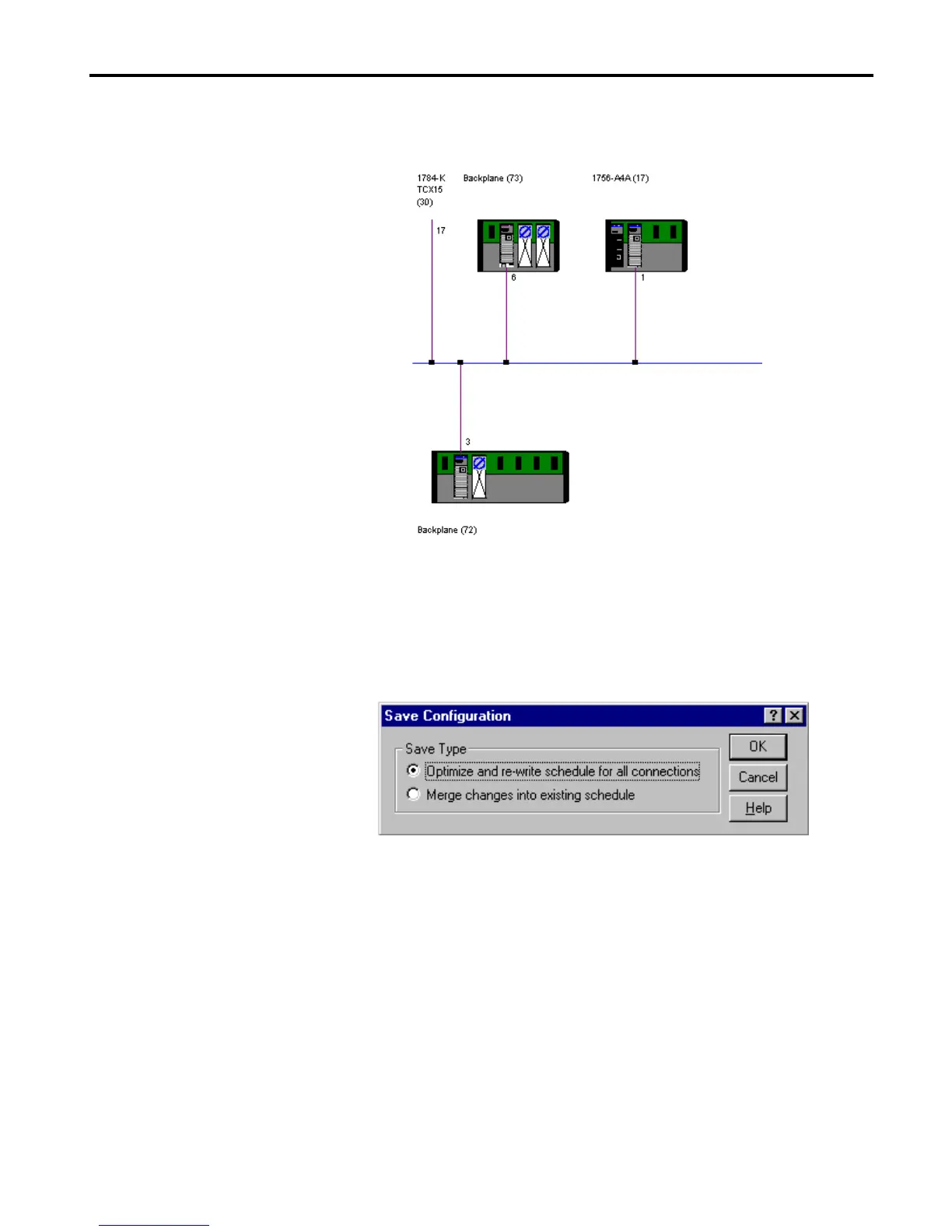

When RSNetWorx for ControlNet is finished surveying, the network
window should appear similar to that shown below.
Schedule the Network and Save the Configuration
1. From the File menu, select Save.
The following pop-up window will appear:
2. Select “Optimize and re-write schedule for all connections” and click
on OK.
The network is now configured and scheduled, and the local controller is
able to communicate with the remote ControlNet devices.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
