1756-6.5.3 - December 1999
PLC-5C to Logix5550 Controller: Unscheduled Messaging 7-3
Create the PLC-5C Program

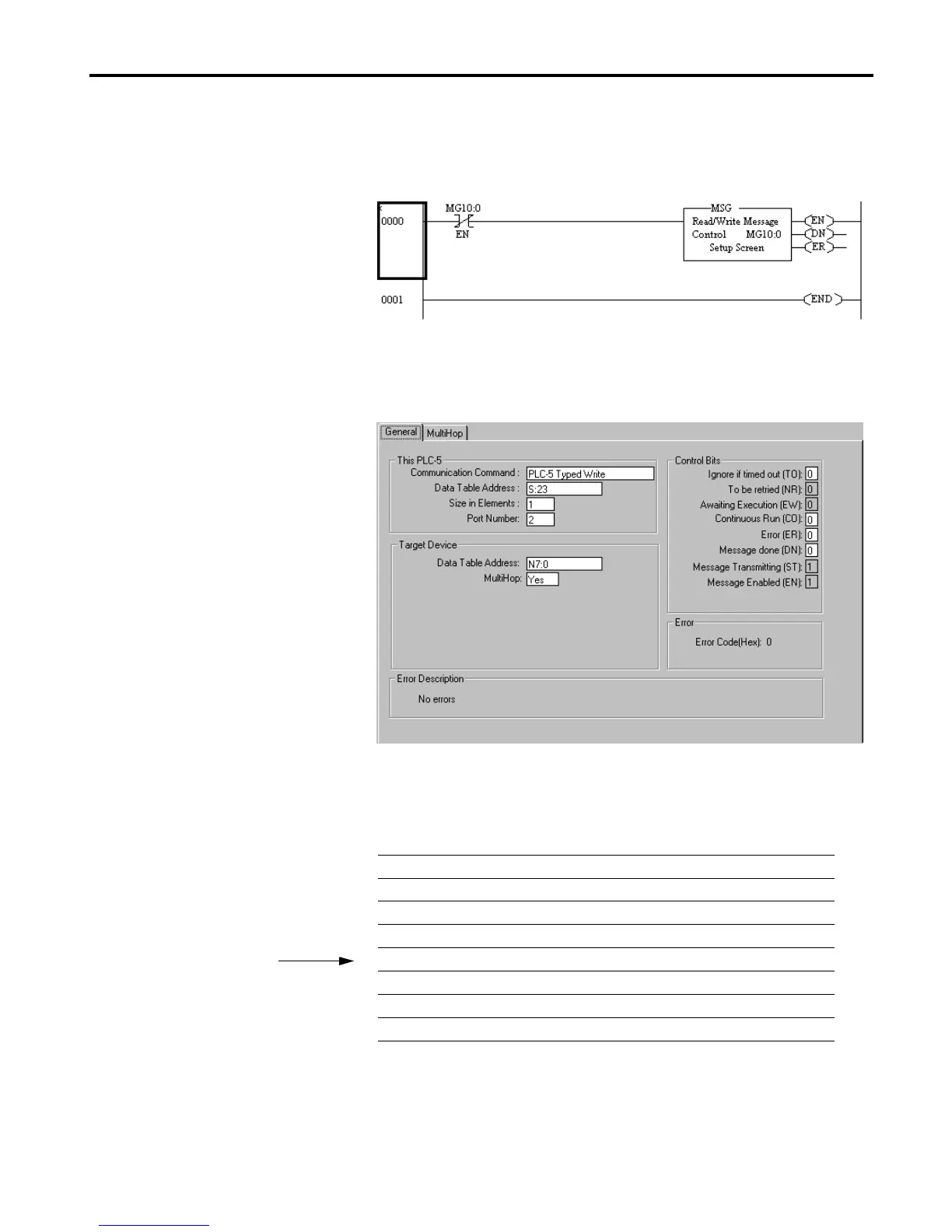

1. Enter the following ladder program:
2. Double-click on Setup Screen in the MSG instruction.
The following window will appear.
3. Under the General tab in the message Setup Screen, enter the following
configuration:
4. Select the MultiHop tab in the Setup Screen.
In this field Select
This PLC
Communication Command PLC5 Typed Write
Data Table Address S:23
Size in Elements 1
Port Number 2
Target Device
Data Table Address N7:0
MultiHop Yes
Port Number 2 is the ControlNet Port
