Logix5550 to Logix5550 Controller: Unscheduled Messaging 3-9
Download the Test Program
(1)
You do not need any ladder logic in the Test program. The program can
consist of a single “End” rung.

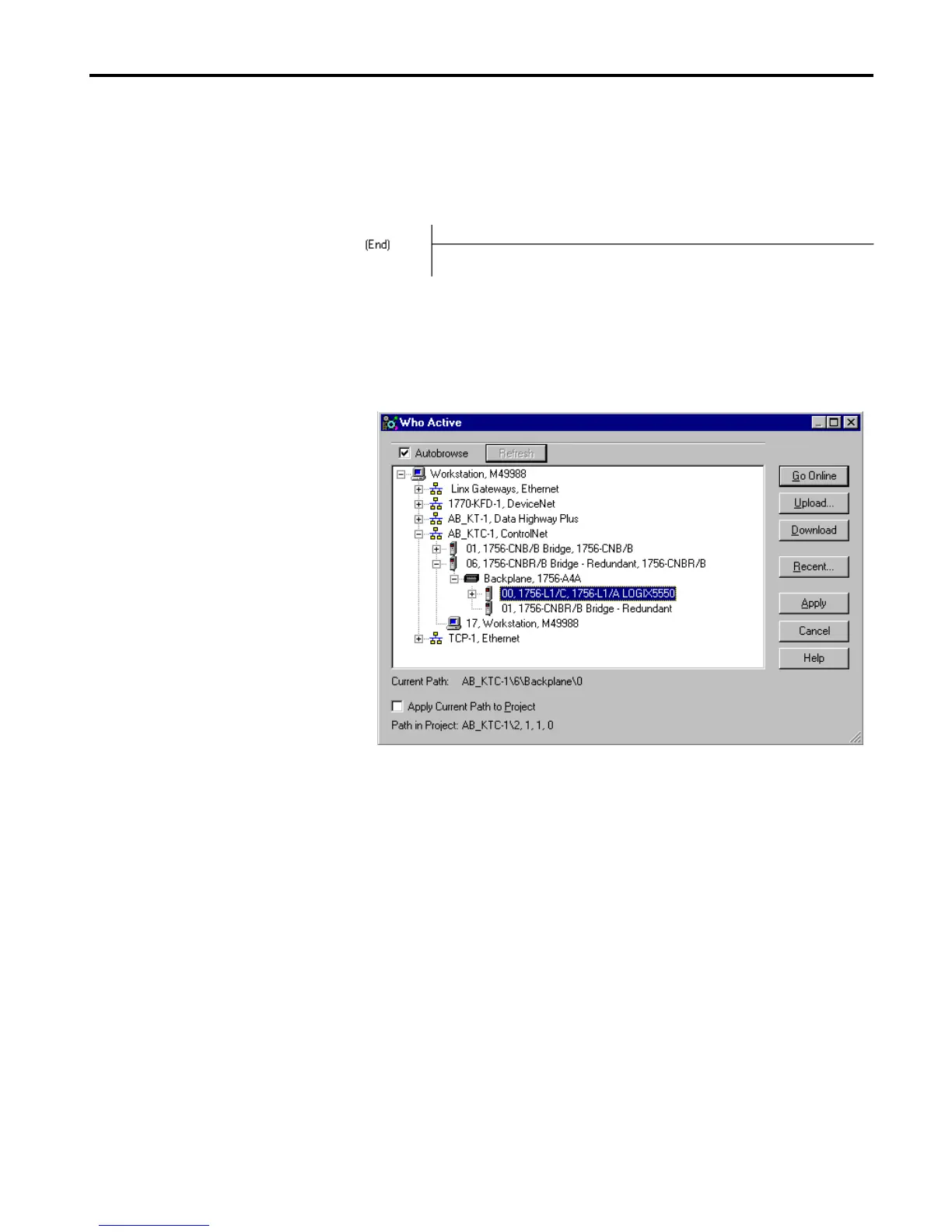

1. Click on the Communications menu and select Who Active.
2. The Who Active window will appear (Your window may look different
depending upon the drivers and other devices you have installed).
3. Drill down the tree through the ControlNet driver and the 1756-CNB
module at node 6 to the controller in slot 0.
4. Highlight the controller and click on the Download button.
(1)
This example uses RSLogix5000 version 2.25. See Appendix D if you are using version 2.10 or earlier.
