Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
Controlling I/O Over a ControlNet Network 10-13
3. Drill down the tree through the ControlNet driver and the 1756-CNB
module at node 1 to the controller in slot 0.
4. Highlight the controller and click on the Download button to download
the program to the Logix5550 controller in the local chassis.
5. Minimize RSLogix5000.
Schedule the Network Using
RSNetWorx for ControlNet
You must run RSNetWorx for ControlNet to enable the I/O modules in the
remote I/O chassis. Running RSNetWorx transfers configuration data to
networked modules and establishes a Network Update Time (NUT) for
ControlNet that is compliant with the desired communication options
specified for each module.
Perform the following steps to schedule and optimize your network:

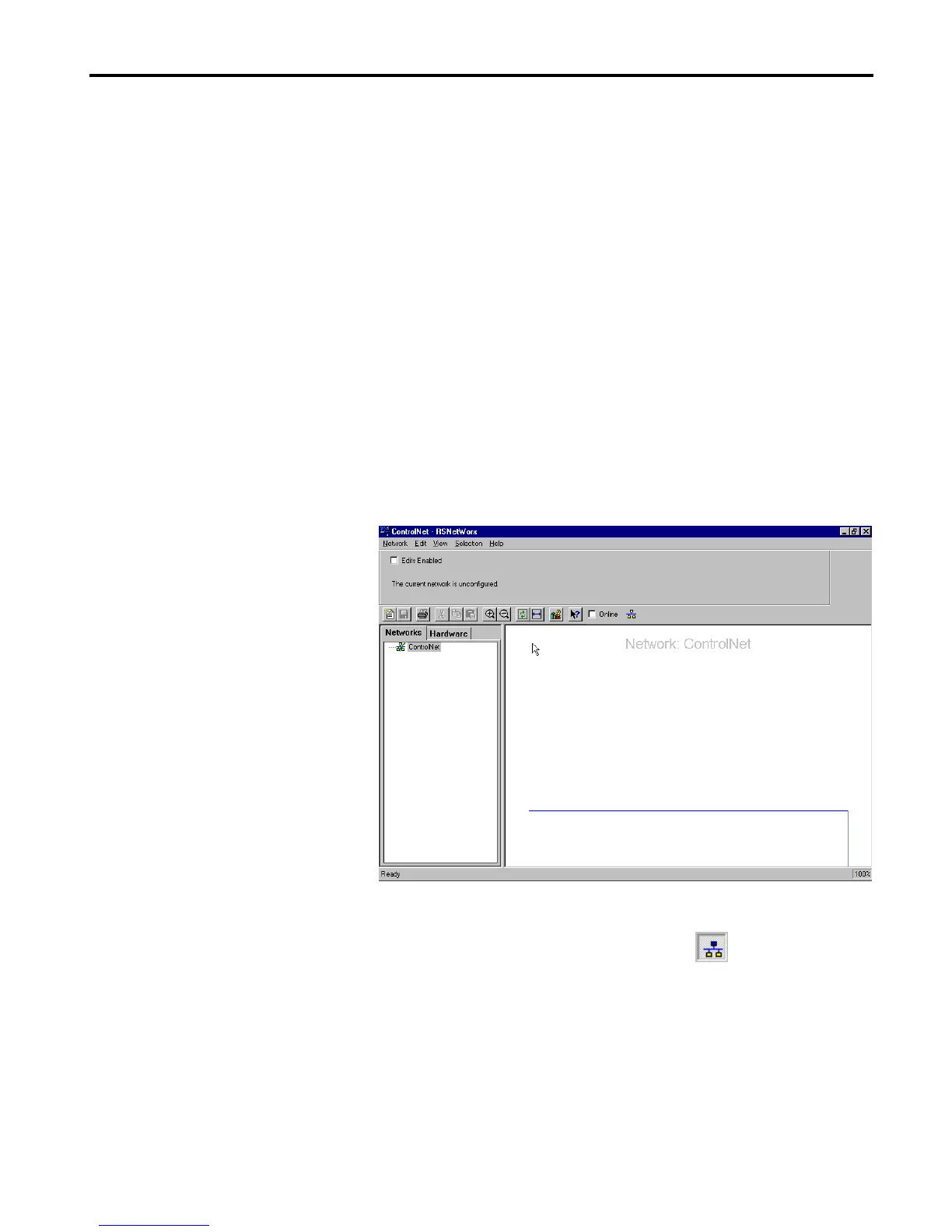

1. Start the RSNetWorx for ControlNet software. The RSNetWorx main
window will appear:
2. From the Network menu, select New.
3. Check the Edits Enabled box and go Online

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
