8-6 PLC-5C to Logix5550 Controller: Scheduled Communications

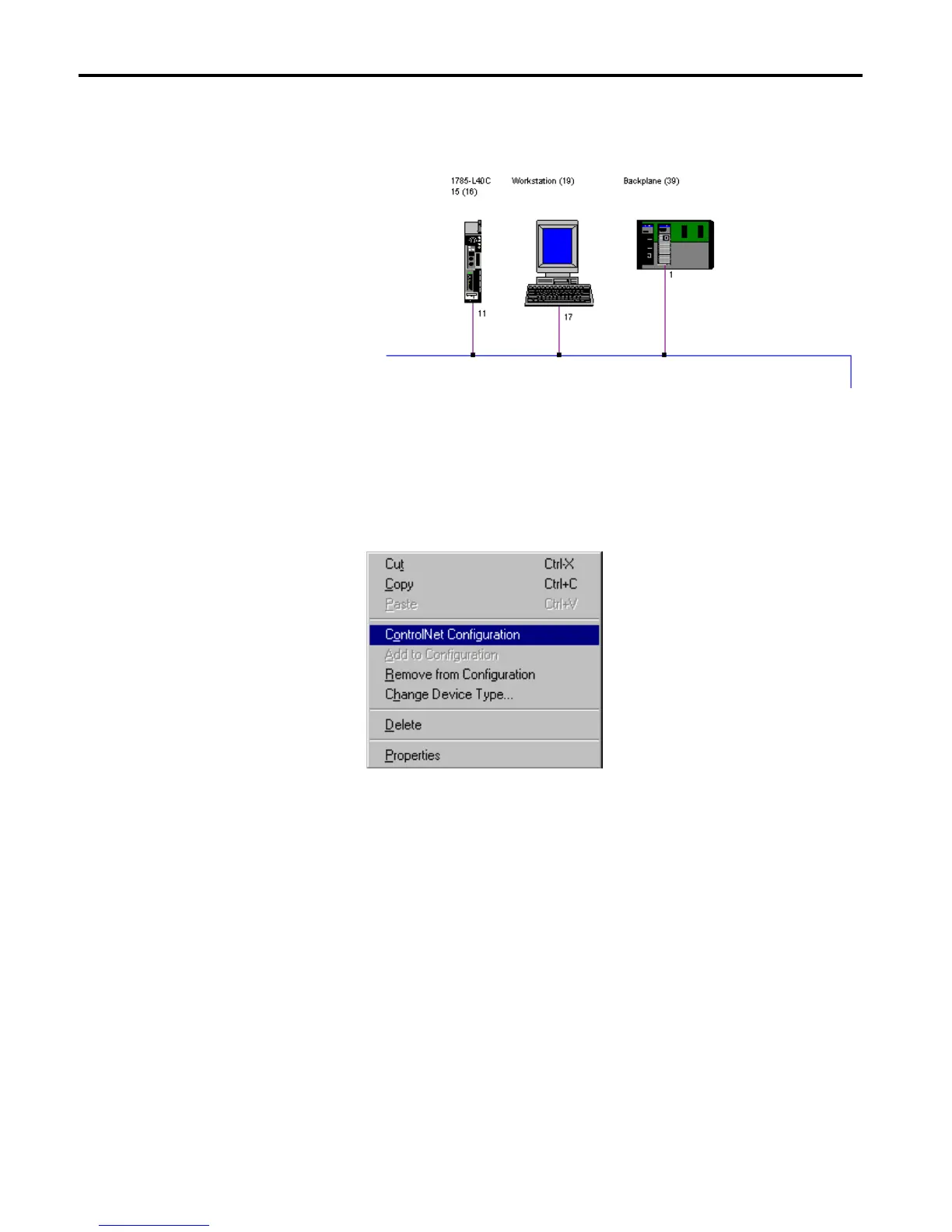

When RSNetWorx for ControlNet is finished surveying, the network
window should appear similar to that shown below.
Configure the PLC-5C Processor
1. Right-click on the PLC-5C icon in the RSNetWorx window.
The following pop-up window will appear:
2. Select ControlNet Configuration.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
