Chapter 4
Logix5550 to Logix5550 Controller:
Scheduled Communication
About the Example Application
This example application sends data from one Logix5550 controller (the
producer) to another Logix5550 controller (the consumer). Both controllers
are on the same ControlNet but in different chassis. In both chassis the
controller is in slot 0 and the 1756-CNB module is in slot 1. The 1756-CNB
modules are configured at node addresses 1 and 6, respectively. A Timer
provides the test data for the message.
Set Up the Example Application

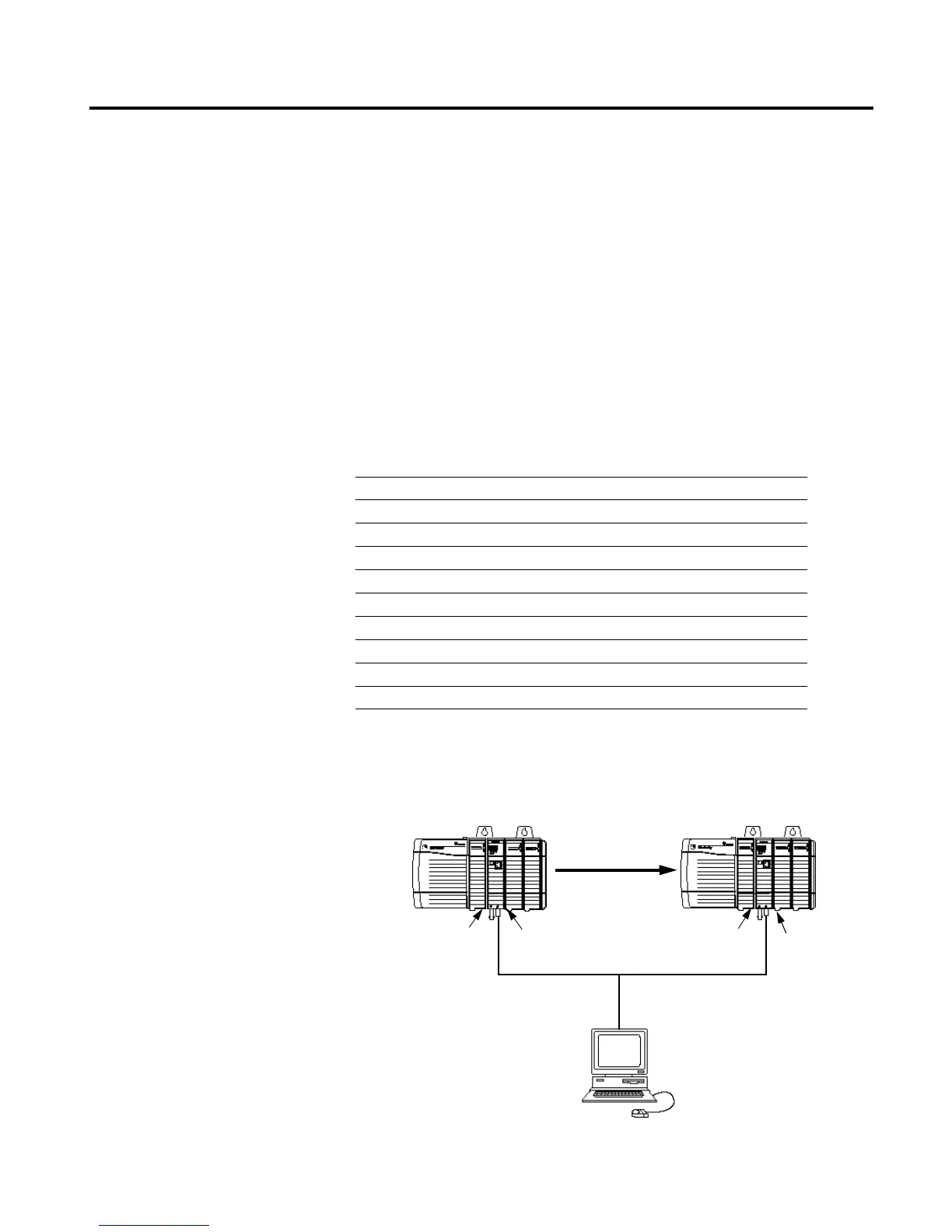

Change your system configuration to that shown below:
What you will do See page
Set Up the Example Application 4-1
Create the Producer Application 4-2
Create the Producer Tags 4-3
Create the Producer Ladder Program 4-5
Download to the Producer 4-5
Configure the Consumer Logix5550 Controller 4-6
Create the Consumer Tags 4-12
Download to the Consumer 4-15
Schedule the Network Using RSNetWorx for ControlNet 4-16
Test the Communications 4-20
ControlNet Network
Logix5550 1756-CNB
(Node 1)
1756-CNB
(Node 6)
Logix5550
Left
Chassis
Right
Chassis
PC with
1784-KTCX15
Interface
Data
Slot 0 1
Slot 0 1
