9. Click on OK to save the tag configuration.
10.Save the RSLogix5000 program.
Download the Logix5550 Program
(1)
You do not need any ladder logic in the Consumer program. The program
can consist of a single “End” rung.

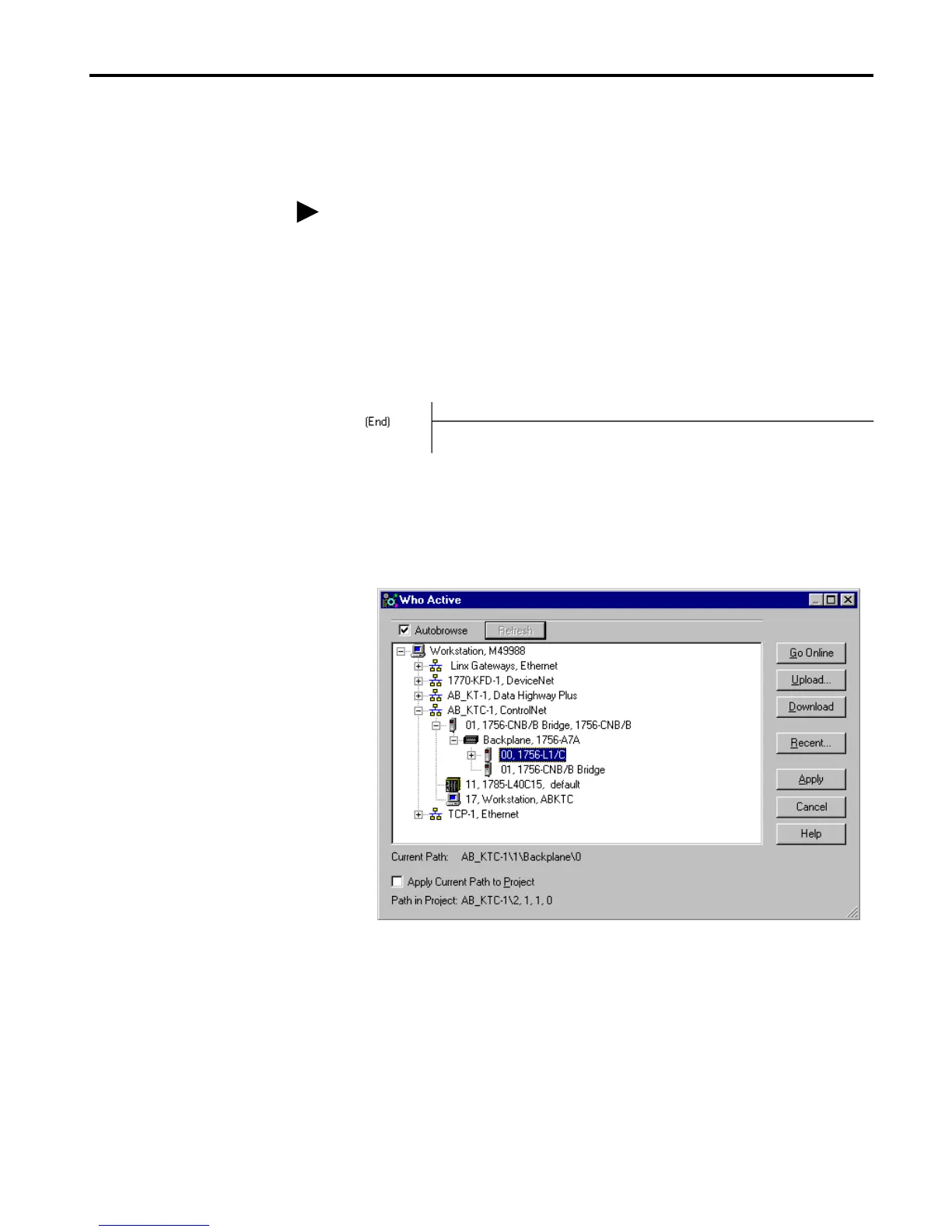

1. Click on the Communications menu and select Who Active.
2. The Who Active window will appear (Your window may look different
depending upon the drivers and other devices you have installed).
3. Drill down the tree through the ControlNet driver and the 1756-CNB
module at node 1 to the controller in slot 0.
4. Highlight the controller and click on the Download button.
5. Minimize RSLogix5000.
For two-way communication you can also configure a produced tag for the
Logix5550 controller at this time. See chapter 6 for details.
(1)
This example uses RSLogix5000 version 2.25. See Appendix D if you are using version 2.10 or earlier.
