Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
2-10 Installing the ControlNet Network

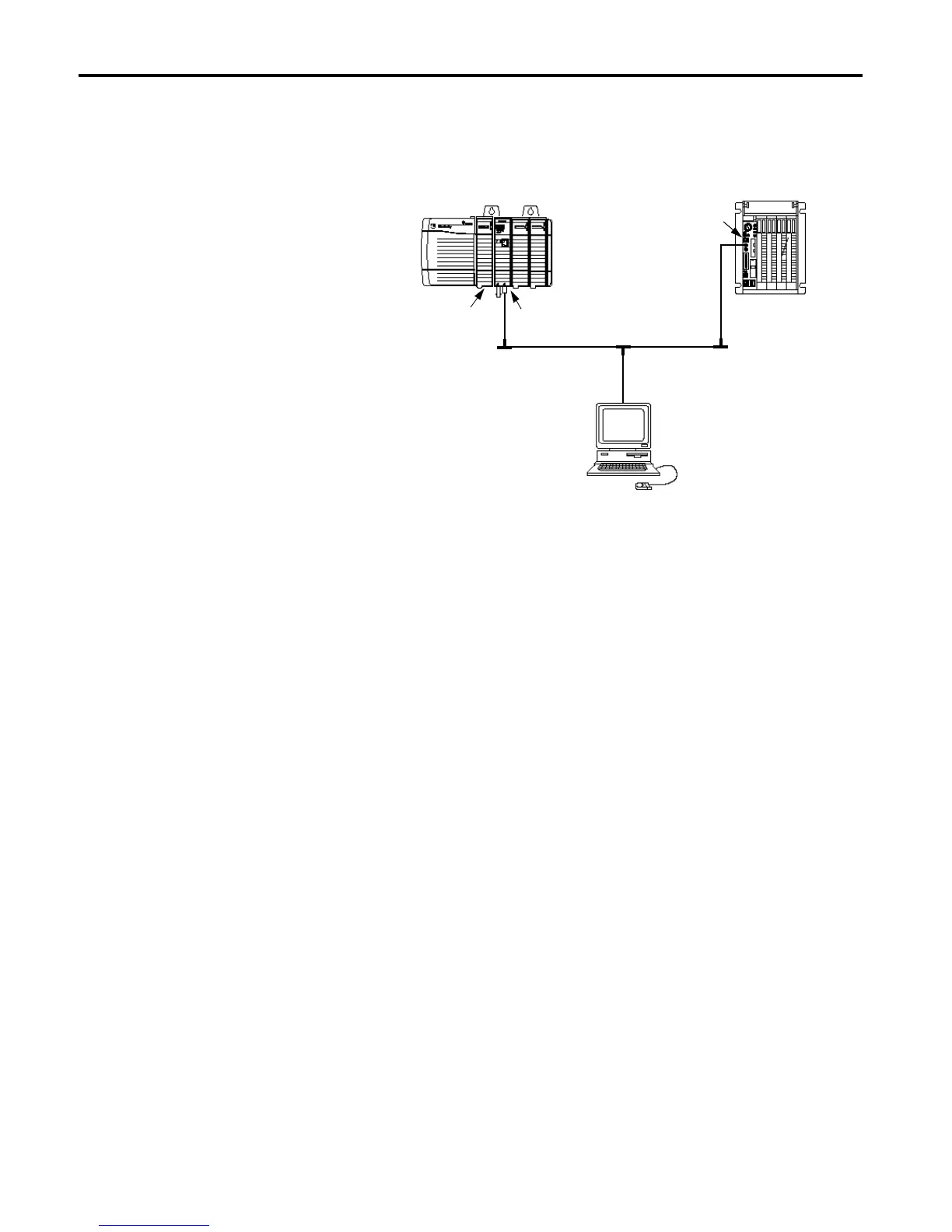

The following figure shows an example of a completed ControlNet network
used for the examples in chapters 5 and 6 of this manual.
Required Software
In order to run the example applications, you will need RSNetworx for
ControlNet, RSLogix5, and RSLogix5000 software installed on your
personal computer. Refer to the System Components table on page P-3 for
information on which versions of the software are required. Follow the
instructions that appear on your screen when installing the software.
For further information, refer to the publications listed on page P-5.
ControlNet Trunk Cable
Logix5550
1756-CNB
PLC-5C
ControlLogix
Chassis
1771 I/O
Chassis
PC with
1784-KTCX15
Interface
Controller
tap
tap with end
terminator
tap with end
terminator

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
