Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
10-4 Controlling I/O Over a ControlNet Network

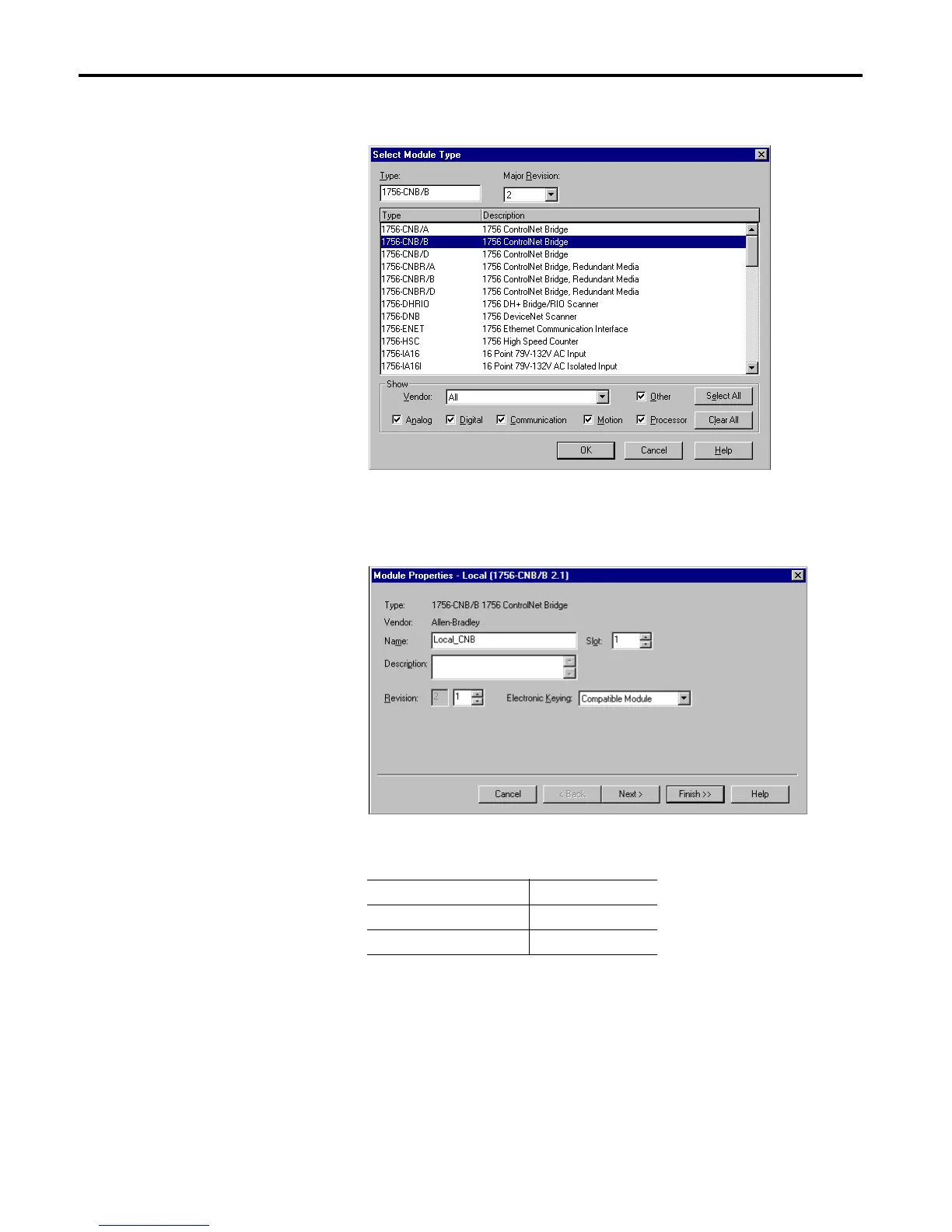

The Select Module Type window will appear.
3. Select the 1756-CNB/B or 1756-CNBR/B module and click on OK.
The Module Properties window will appear.
4. Enter the following parameters:
5. Click on Finish to accept the configuration.
Add the Remote CNB Module to the I/O Configuration
Next, you must add the remote 1756-CNB as a “child” of the local
1756-CNB.
Name Local_CNB
Slot 1
Electronic Keying Compatible Module

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
