1756-6.5.3 - December 1999
Controlling I/O Over a ControlNet Network 10-5

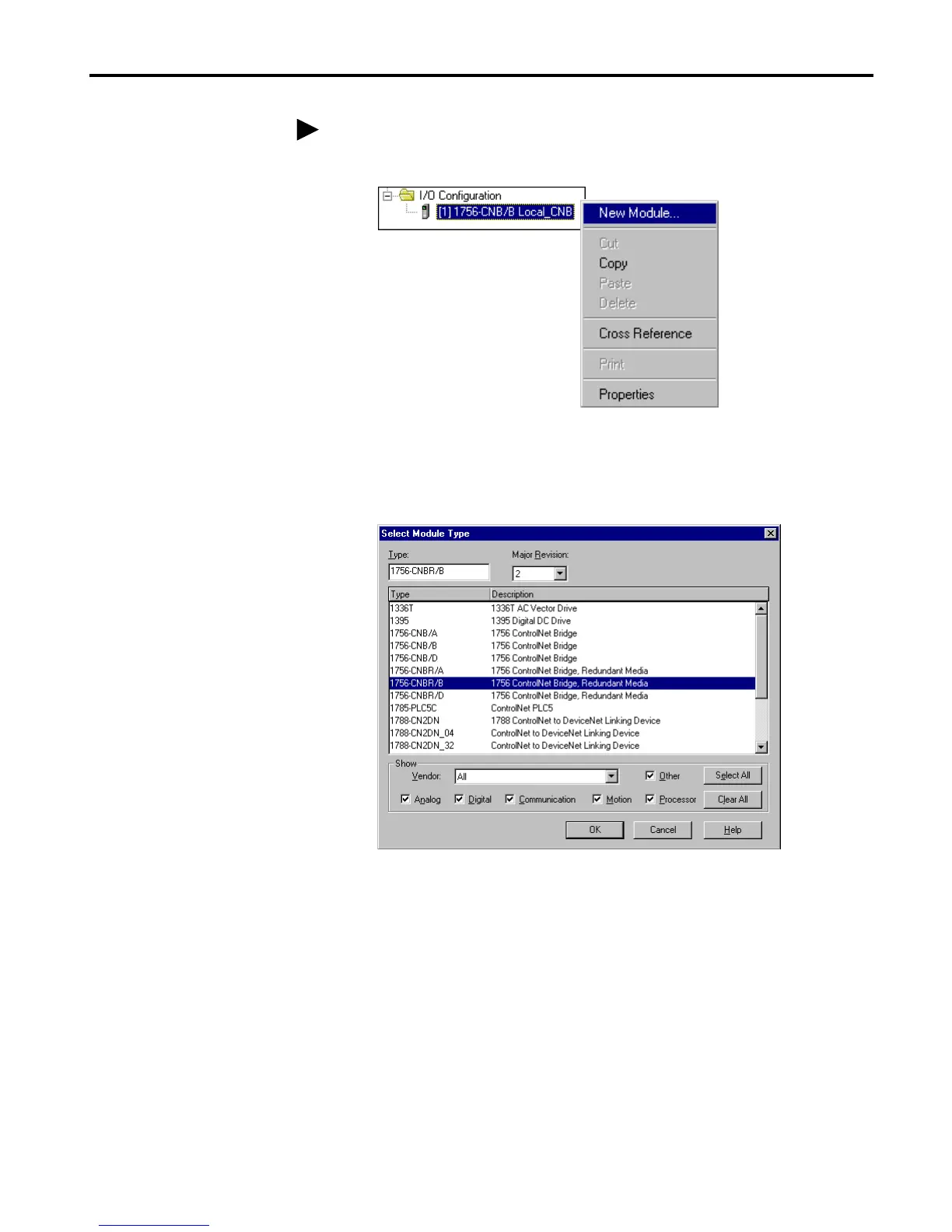

1. In the Project window, right click on the local 1756-CNB under the I/O
Configuration folder and select New Module from the pop-up window.
The Select Module Type window will appear.
2. Select the 1756-CNB/B or 1756-CNBR/B module from the list.
In a FLEX I/O system, you would add a FLEX ControlNet adaptor instead
of the remote CNB module.
