Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
2-4 Installing the ControlNet Network

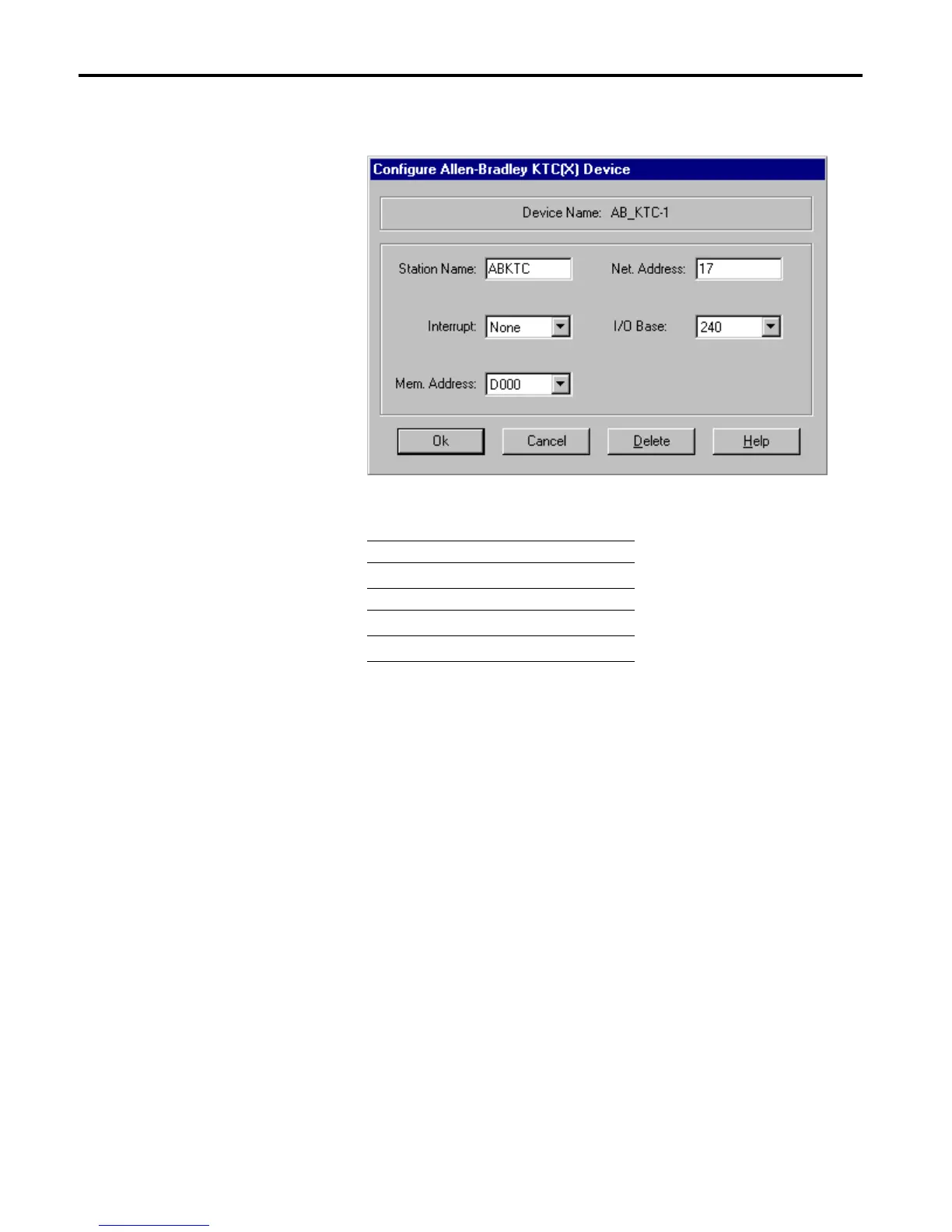

The Configure Device window will appear:
5. Enter the following configuration:
6. Click on OK to save your settings.
7. Close RSLinx.
Station Name ABKTC
Net. Address
17
(1)
(1)
This is an unscheduled device. For maximum
efficiency, set its address higher than the highest
scheduled address on your network.
Interrupt None
I/O Base
240
(2)
(2)
Modify as necessary for your system.
Mem. Address
D7
(2)

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
