9-4 PLC-5C to PLC-5C Unscheduled Messaging Over Two ControlNet Networks

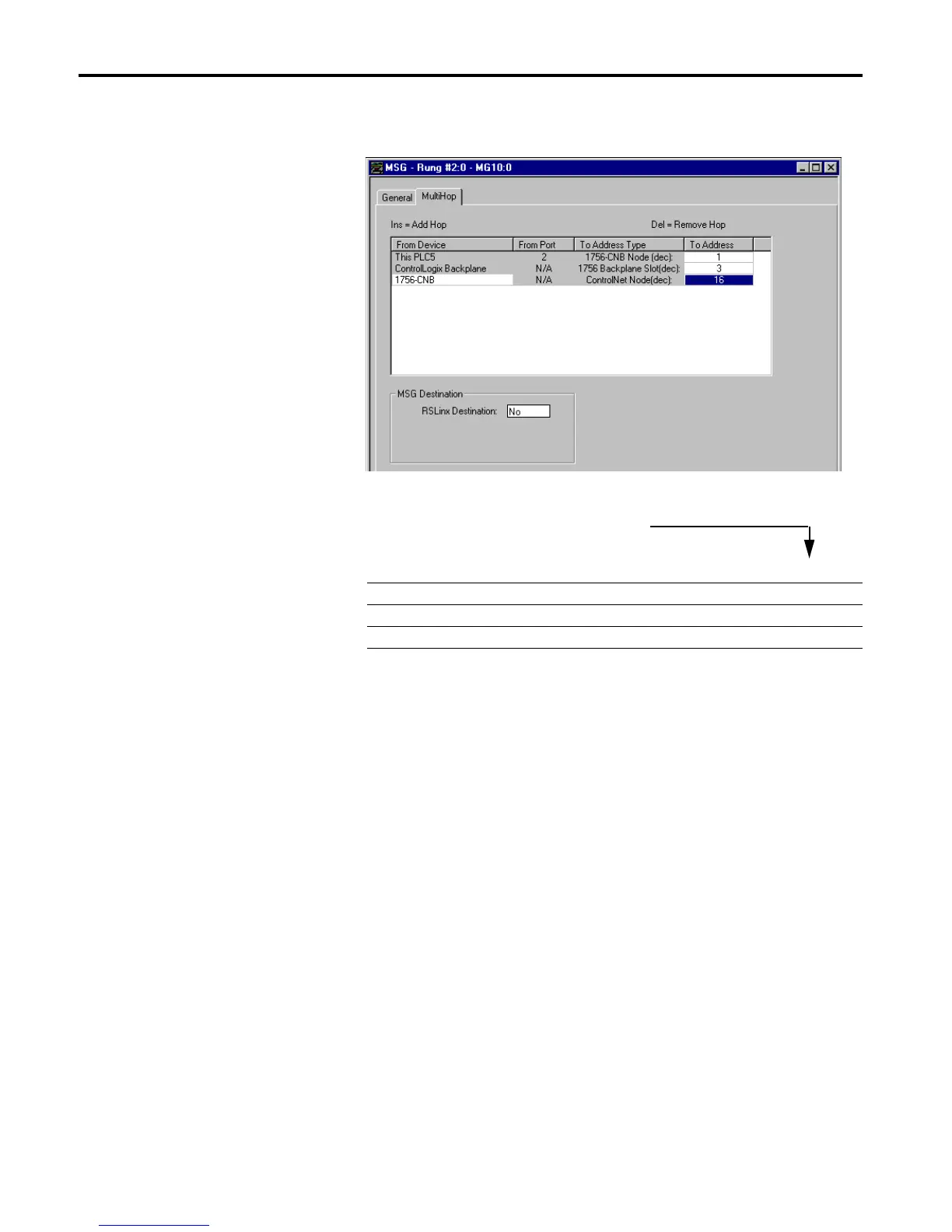

4. Select the MultiHop tab in the Setup Screen.
5. Enter the following data in the To Address field (the other fields are
filled in automatically by the software):
6. From the Edit menu, select Verify Project.
7. Save the file.
From Device From Port To Address Type To Address
This PLC5 2 1756-CNB Node (dec) 1
ControlLogix Backplane N/A 1756 Backplane Slot (dec) 3
1756-CNB N/A ControlNet Node (dec) 16
