1756-6.5.3 - December 1999
11-12 Adding an I/O Chassis to an Existing ControlNet Network

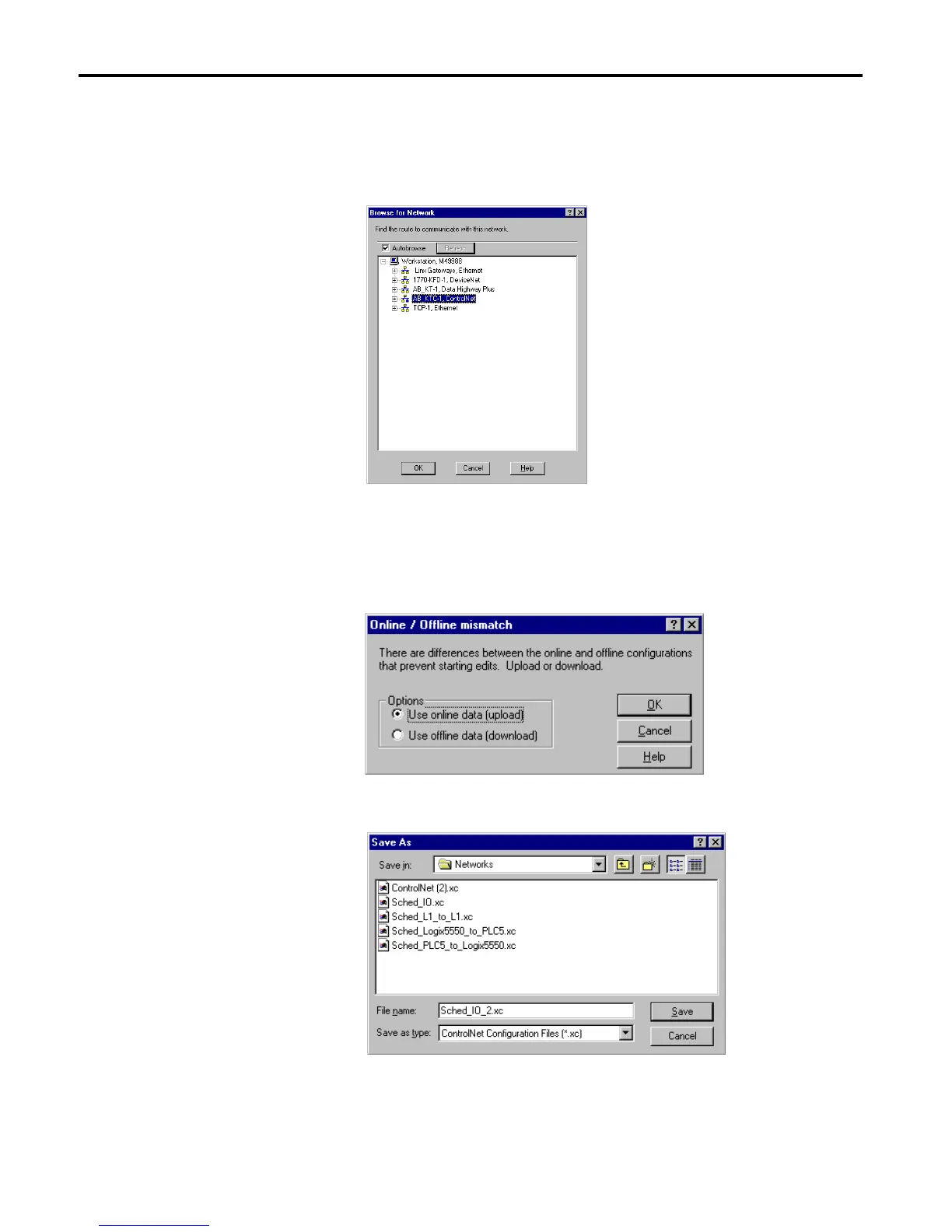

The Browse for Network window will appear with a list of available
drivers. (Your list may appear different from that shown below, but you
should have the AB_KTC-1 driver configured as described in
chapter 2.).
4. Select the AB_KTC-1 driver and click on OK.
5. If you receive a message that there is an Online/Offline mismatch, select
the Use online data (upload) option and click on OK.
The Save As window will appear:
6. Enter an appropriate name for the network (e.g., “Sched_IO_2”) and
click on Save.
