Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
11-18 Adding an I/O Chassis to an Existing ControlNet Network

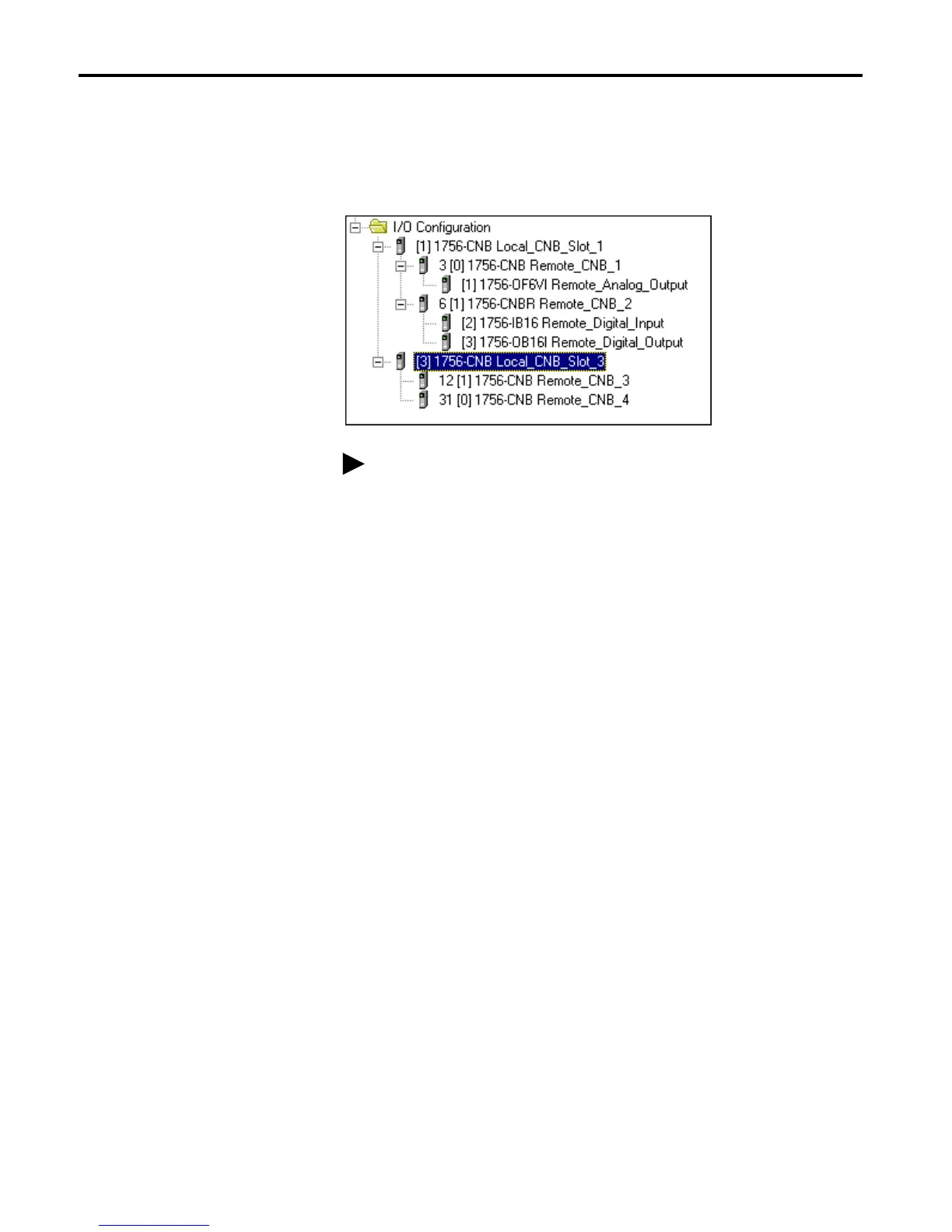

The RSLogix5000 I/O configuration for the expanded network is shown in
the following figure. To add remote I/O modules to the configuration, add
them to the remote 1756-CNB modules as you did in the example
application.
This completes the expanded remote I/O example.
Refer to Appendix A for information on allocating communication
connections in a ControlNet network.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
