1756-6.5.3 - December 1999
2-8 Installing the ControlNet Network

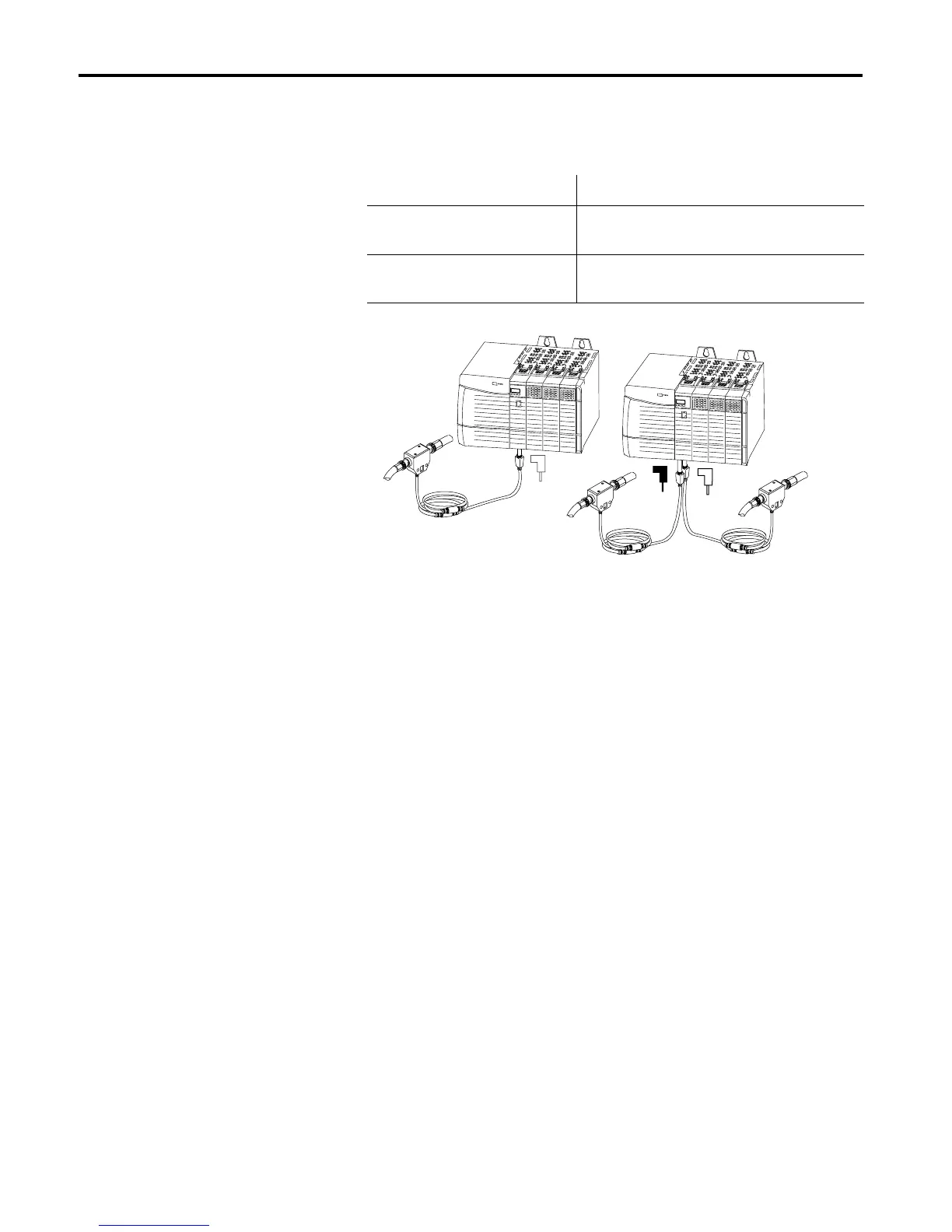

2. Connect the tap’s straight or right angle connector to the module’s BNC
connector.
.
If your node supports Connect the tap’s connector
non-redundant media
(1756-CNB, -CNBR)
to the channel A connectors
(channel B is not used)
redundant media (1756-CNBR)
•
from trunkline A to channel A
•
from trunkline B to channel B
Tap
segment 2
tap
tap
tap
segment 1
segment 1
20956
