Logix5550 to Logix5550 Controller: Scheduled Communication 4-7

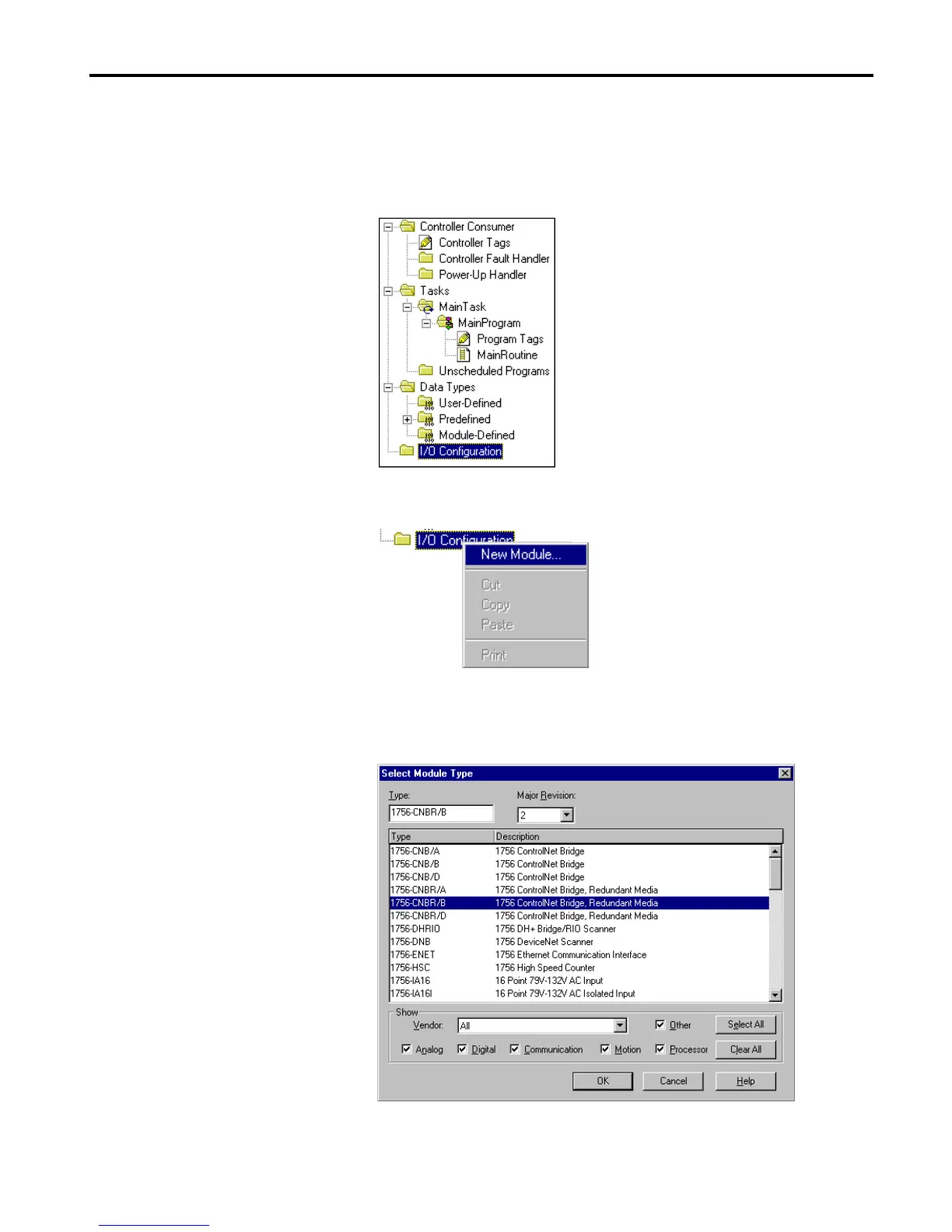

Add the Local CNB Module to the I/O Configuration
1. Select the I/O Configuration folder in the project window and click the
right mouse button
The following pop-up menu will appear.
2. Select New Module.
The Select Module Type window will appear.
3. Select the 1756-CNB/B or 1756-CNBR/B module and click on OK.
