joystick at its maximum travel limit provides the maximum chair speed. The available chair
speed is reduced as the suction ring enters the Capture Zone.
The joystick controls the chair position in three axes:
• Moving the joystick left or right causes the chair to move laterally (in the x axis)
• Moving the joystick fore or aft causes the chair to move superiorly or inferiorly (in the y
axis)
• Rotating the joystick clockwise causes the chair to move upward (in the z axis)
• Rotating the joystick counter-clockwise causes the chair to move downward (in the z axis)

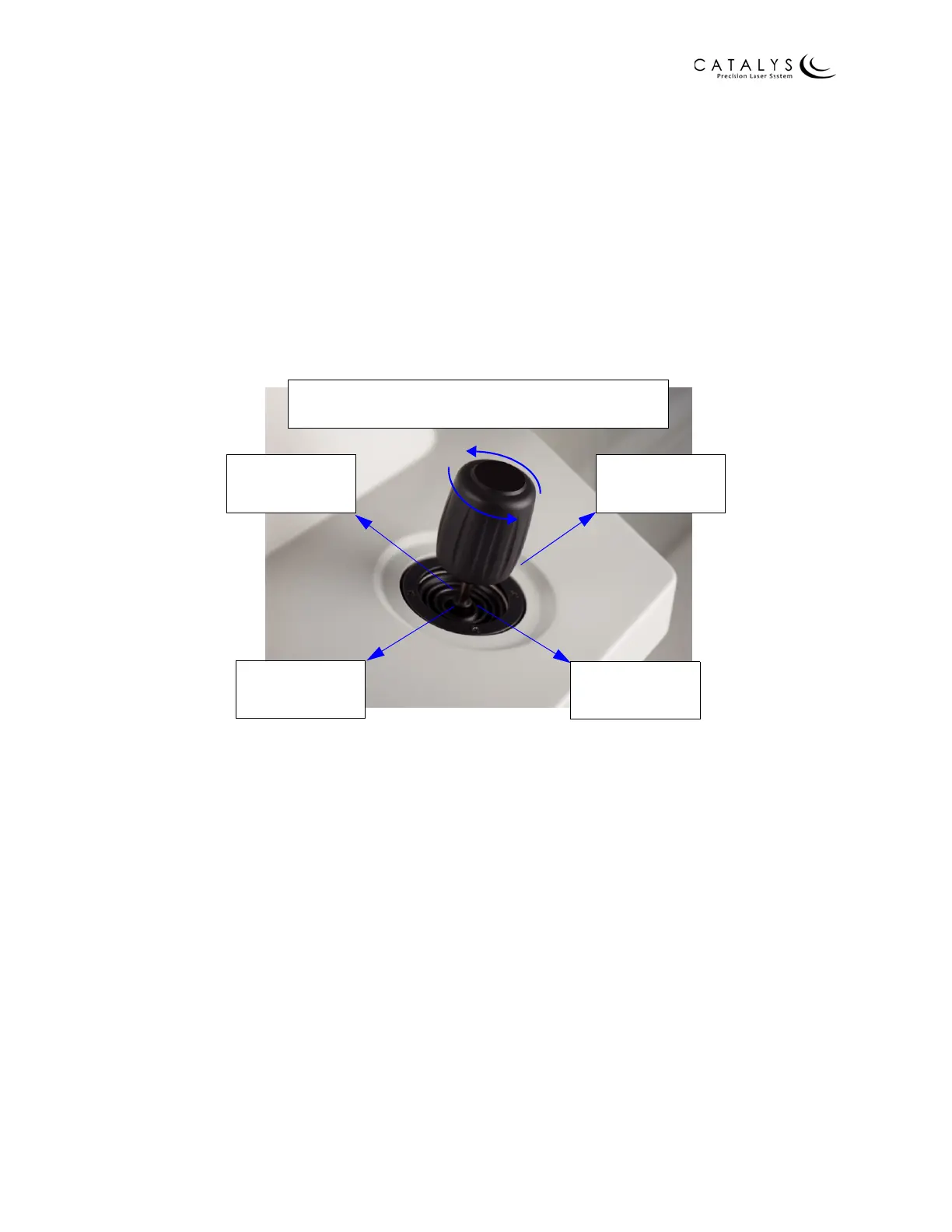

Figure B.3 Joystick Control from Surgeon Perspective
NOTE
Once the suction ring is captured to the system, the patient chair joystick is disabled.
Moves Chair
Laterally Along
X Axis
Moves Chair
Orthogonally Along
Y Axis
Moves Chair
Laterally Along
X Axis
Moves Chair
Orthogonally Along
Y Axis
Rotate Joystick Clockwise to Raise Chair;
Rotate Joystick Counter-clockwise to Lower Chair
