Analog Devices adsp-2100 User Manual

5Serial Ports
5 – 17
B3 B2 B1 B0
B3 B2 B1 B0
SCLK
OUTPUT
RFS
DR
RFS
INPUT
SPORT Control Register:
Internal Frame Sync 0X10 XXX1 X0XX 0011
External Frame Sync 0X10 XXX0 X0XX 0011
Both Internal Framing Option and External Framing Option Shown

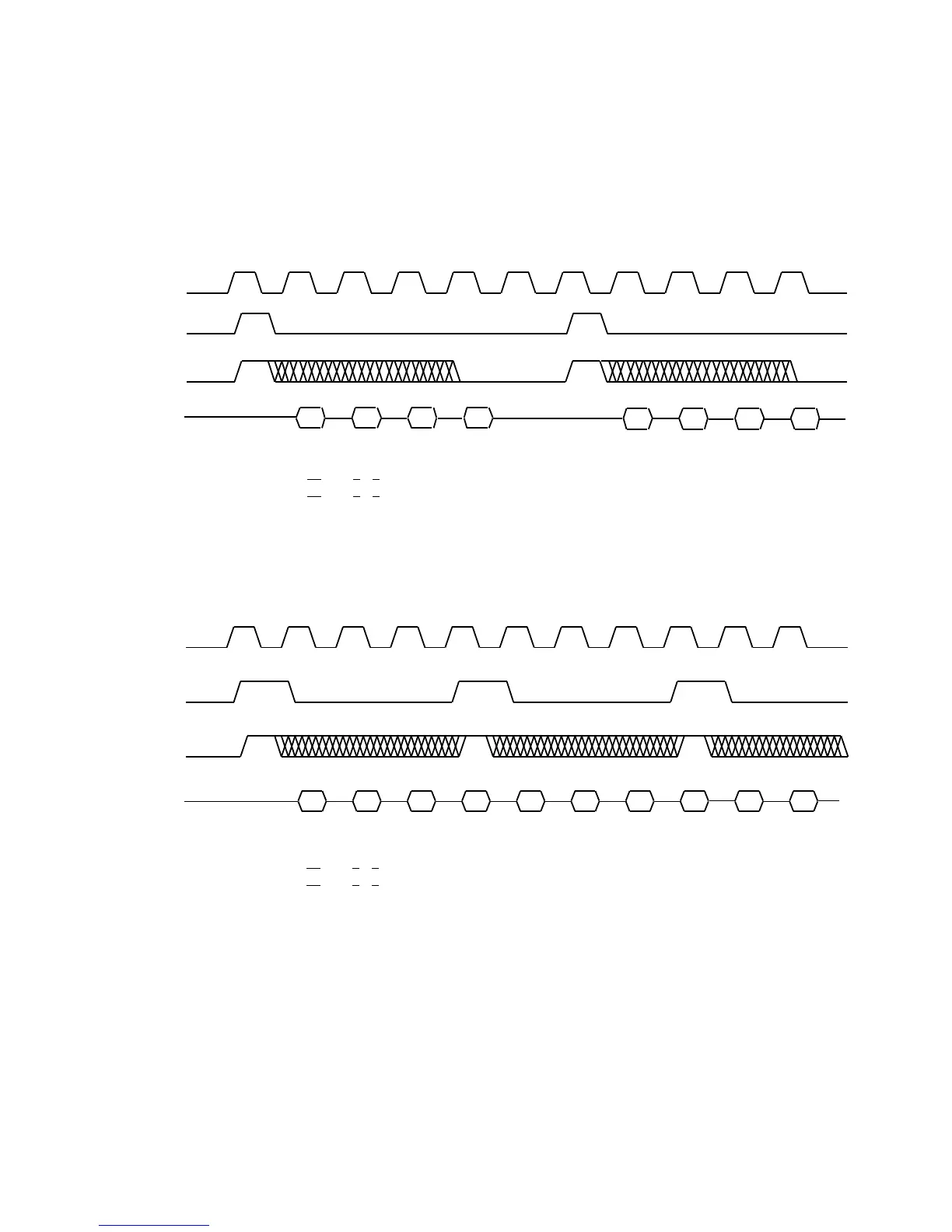

Figure 5.10 SPORT Receive, Normal Framing
SCLK
OUTPUT
RFS
DR
RFS
INPUT
B3 B2 B1 B0 B3 B2 B1 B0 B3 B2
SPORT Control Register:
Internal Frame Sync 0X1
0 XXX1 X0XX 0011
External Frame Sync 0X10 XXX0 X0XX 0011
Both Internal Framing Option and External Framing Option Shown
Figure 5.11 SPORT Continuous Receive, Normal Framing
