5. Press the Spectral Emission Summary submenu key to display the Spectral Emission
Summary table (Figure 3-6).
RF Summary
The RF Summary displays the critical transmitter performance measurements in the table
format, without demodulating the W-CDMA/HSPA+ signal. The parameters displayed in the
RF summary table are Channel Power in dBm and Watts, Carrier Frequency, Frequency
Error, Spectral emission Pass/Fail criteria, Occupied Bandwidth, Peak to Average Power,
ACLR at –10 MHz, –5 MHz, 5 MHz and 10 MHz channels.

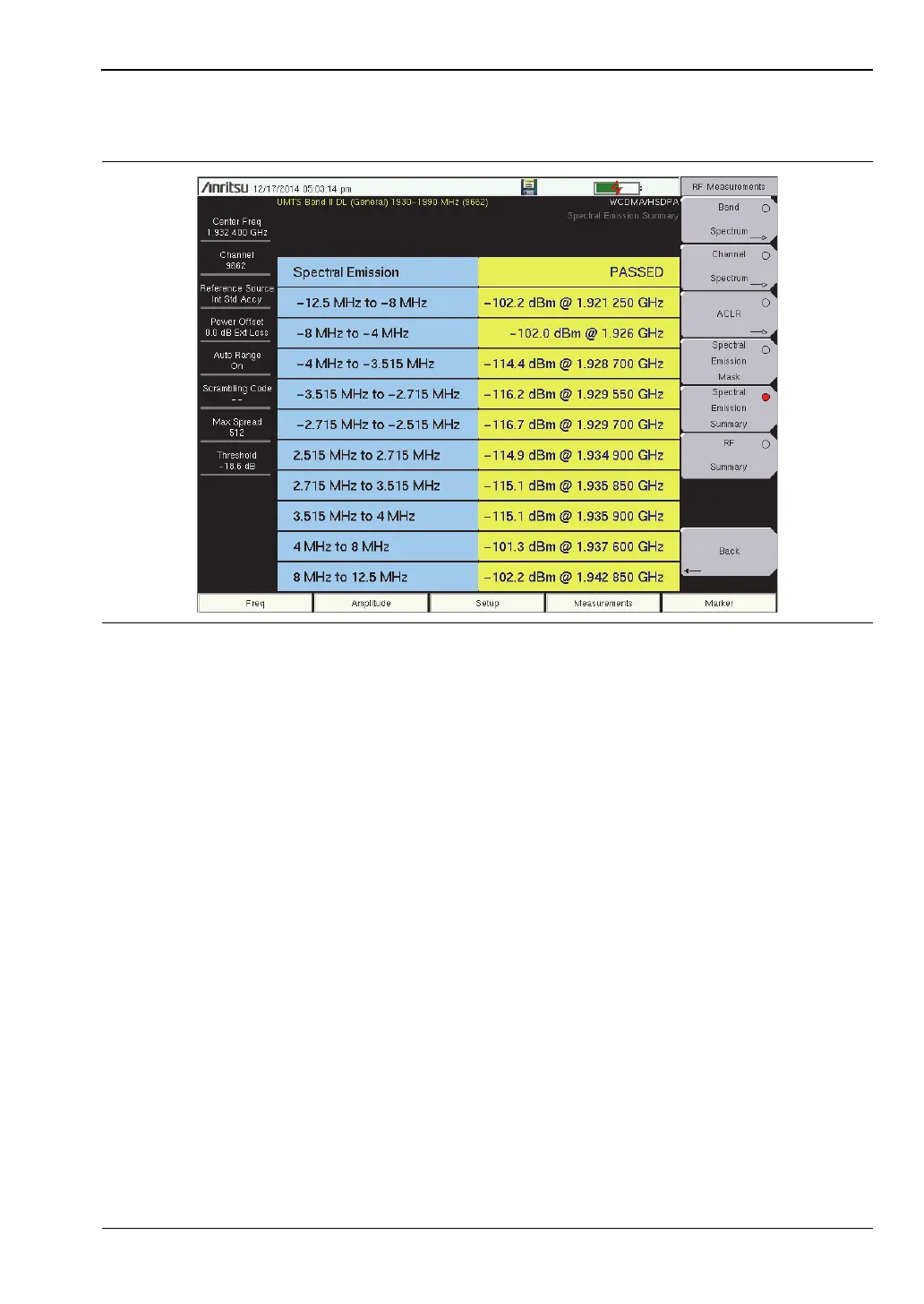

Figure 3-6. Spectral Emission Mask Summary
