LTE Signal Analyzer 5-4 LTE Modulation Measurements
3GPP MG PN: 10580-00234 Rev. T 5-15
Modulation Summary
1. Press the Measurements main menu key.
2. Press the Modulation submenu key.
3. Press the Modulation Summary submenu key to activate and display the modulation
measurements in table format (Figure 5-10).
4. Press the Back submenu key to return to the Measurements menu.

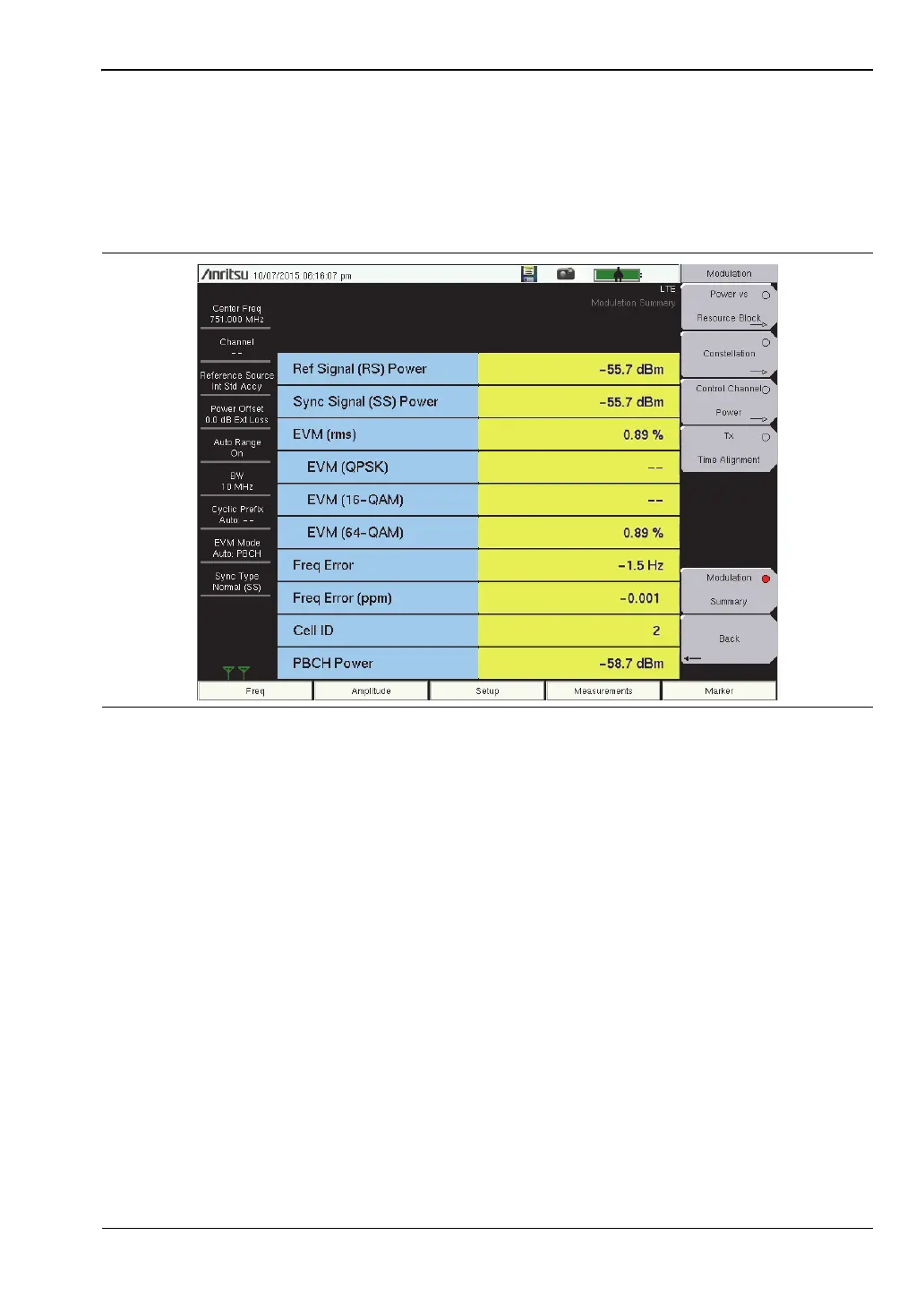

Figure 5-10. Modulation Summary
