6-4 TD-LTE Modulation Measurements TD-LTE Signal Analyzer
6-16 PN: 10580-00234 Rev. T 3GPP MG
Modulation Summary
1. Press the Measurements main menu key.
2. Press the Modulation submenu key.
3. Press the Modulation Summary submenu key to activate and display the modulation
measurements in table format (Figure 6-11).
4. Press the Back submenu key to return to the Measurements menu.

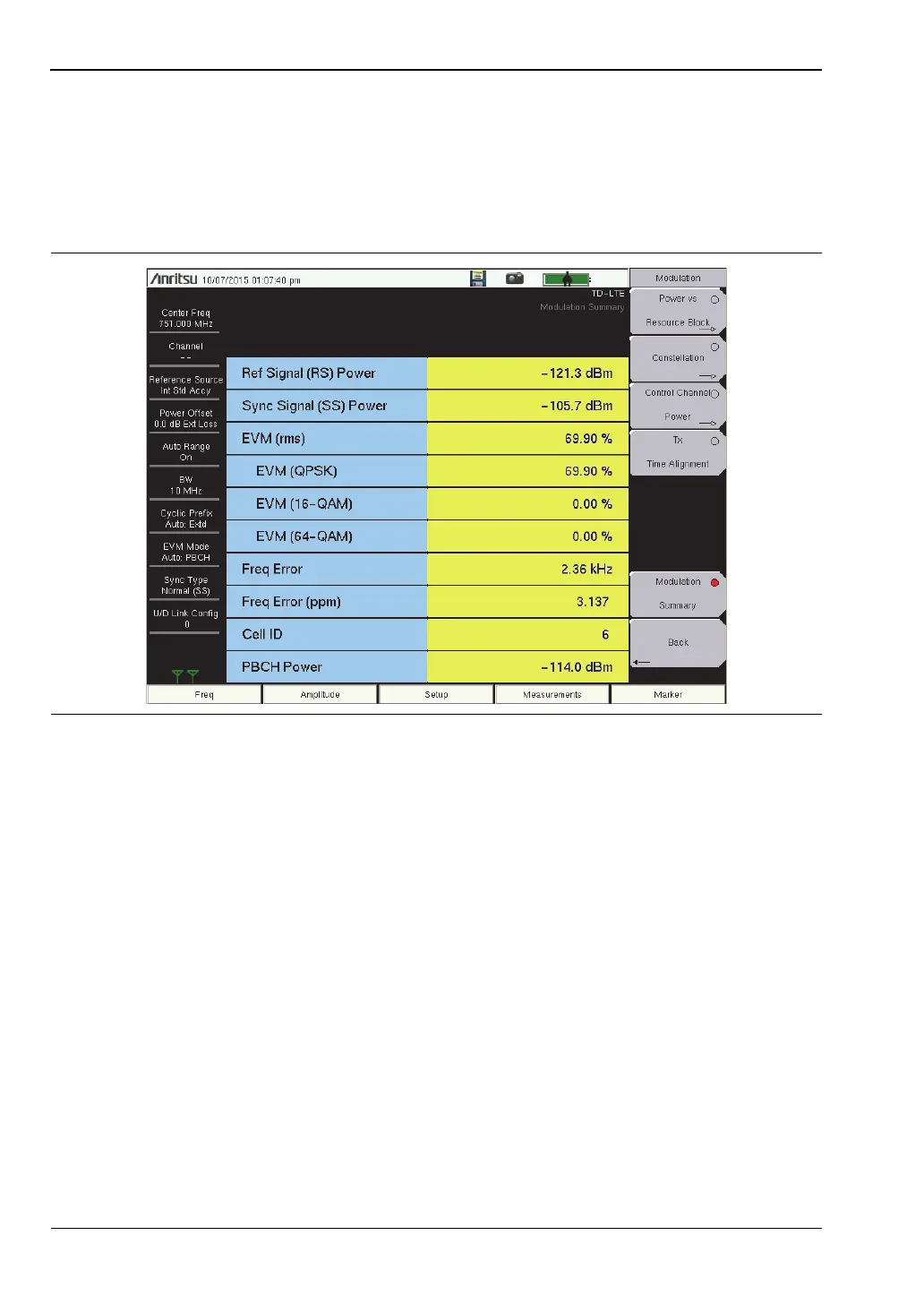

Figure 6-11. Modulation Summary
