2-7 1-Port Measurements Cable and Antenna Analyzer
2-24 PN: 10580-00241 Rev. B Cable & Antenna Analyzer MG
5. Connect the antenna to the RF Out connector on the instrument.

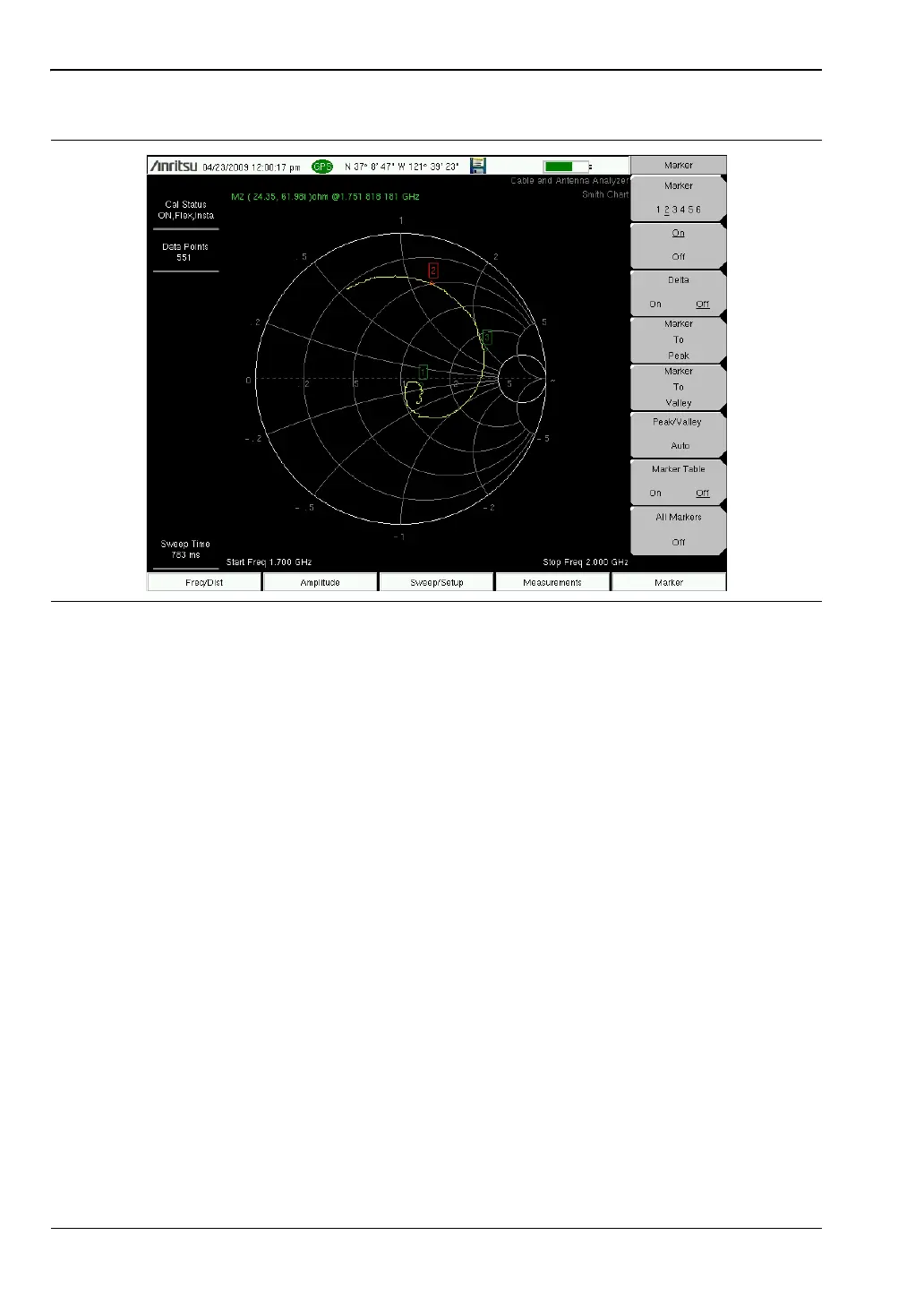

Figure 2-18. Typical Smith Chart display of a PCS Antenna
