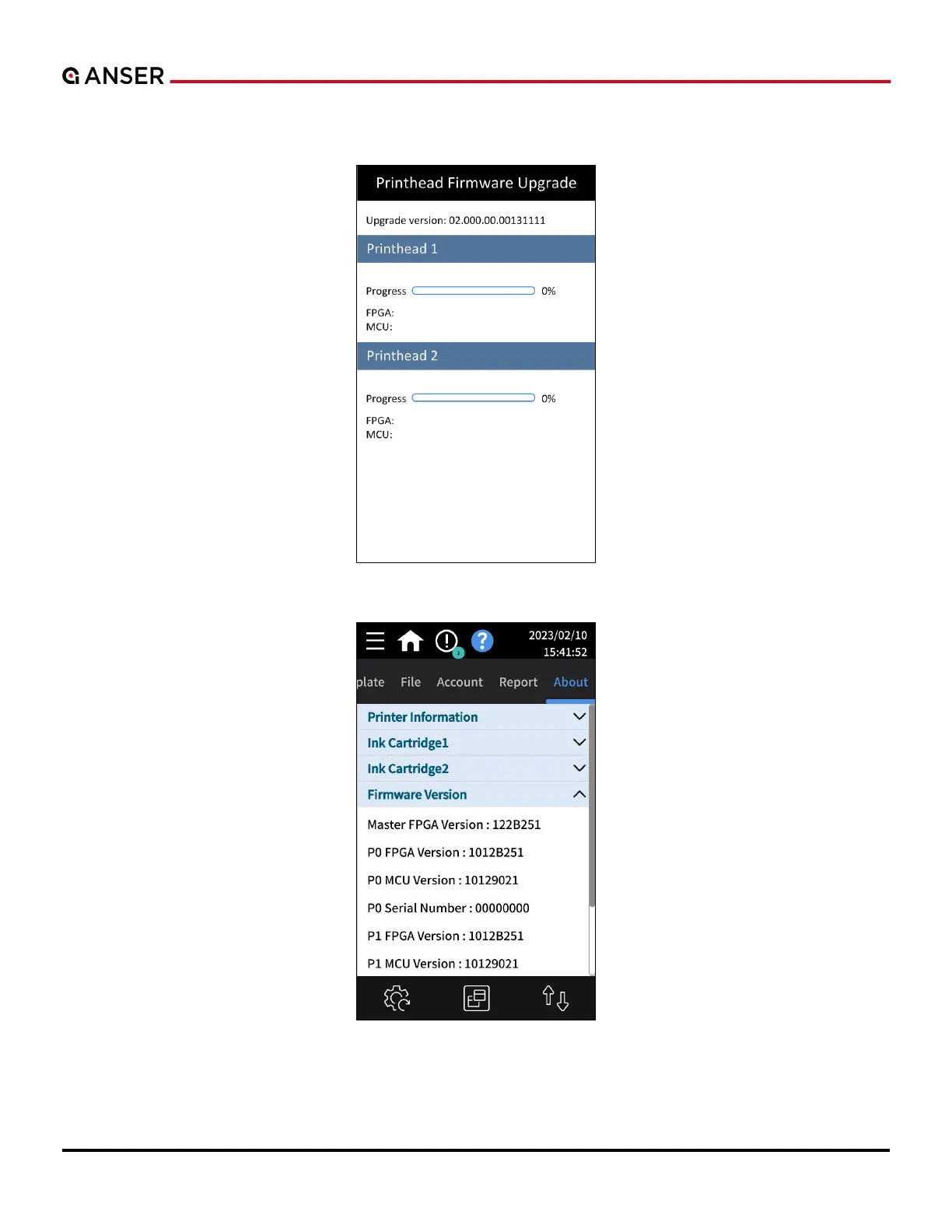

STEP 3: Wait for the process to be completed and it might take several minutes. When done, please press Exit and then

Yes to exit the printhead update mode. It will go back to login page.

STEP 4: Go to Menu > Settings > About Printer > Firmware Version, and P0 & P1 FPGA should be shown.
